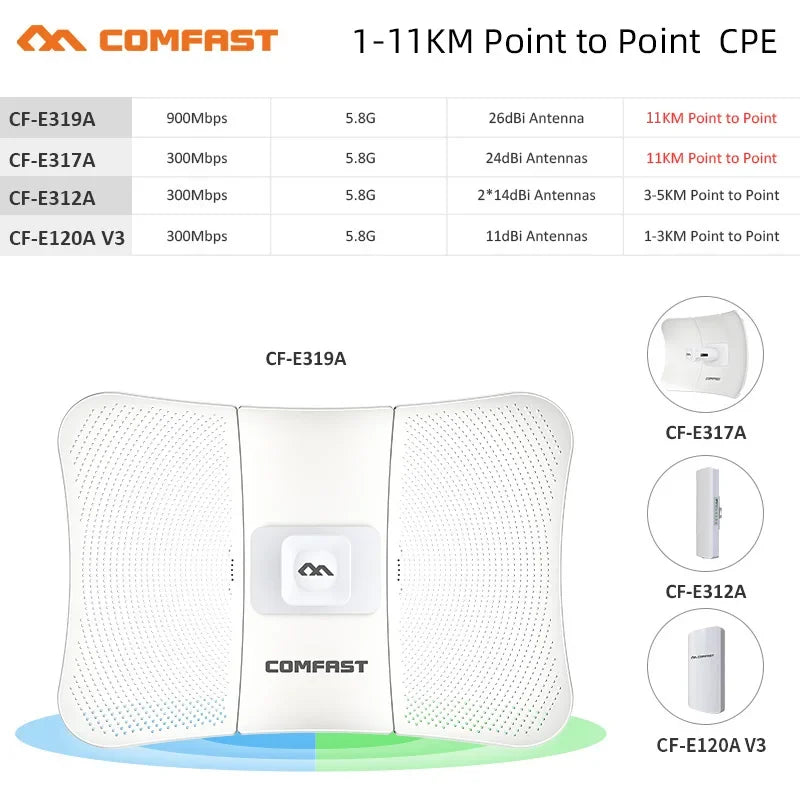

Difference:
CF-E319AV2 900Mbps 5G 26dbi Antenna 1000mW 24V poe Adapter 5-11KM
CF-E312AV2 300Mbps 5G 2*14dbi Antenna 500mW 48V poe Adapter 3-10KM

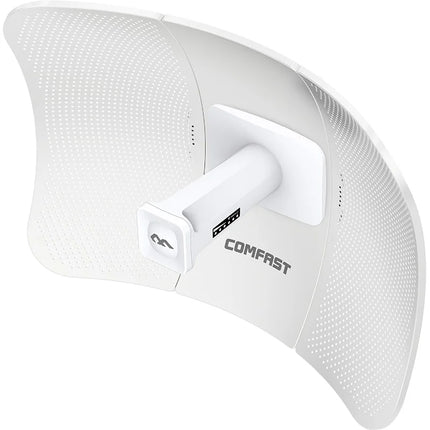

CF-E319AV2 Product Overview
CF-E319AV2 5GHz 1000mW High Power 26dBi Antenna outdoor CPE is designed to
PtP and PtMP solutions for privated ISP wireless connectivity， CCTV surveillance and data transmission.
It features with 26dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 11km.
Adopt of auto-bridging technology， two CPE can connect to each other automatically to make it easy to setup.
Outdoor Point to point as wifi bridge 5-11km or more (no obstacles)
Suggestion:
The distance "3-11KM" mean 2pcs CPE based on point to point bridge mode.
There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!
Main Features
1.26dBi High-Gain directional butterfly shape antenna
2. High Transmit Power 1000mW (30dBm)
3. Working frequency :802.11a/an: 5.180GHz-5.825GHz
4. 900Mbps 5.8Ghz
5. 24V Poe Adapter
6.1*10/100/1000Mbps LAN/WAN RJ45 Ethernet Port
7.6 Led indicator: Poe Adapter ,Network Port, Wifi , Signal Strength (1-3)

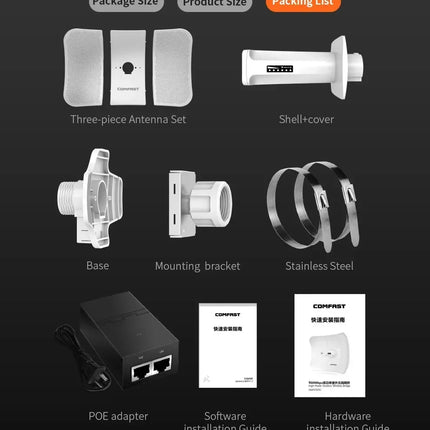

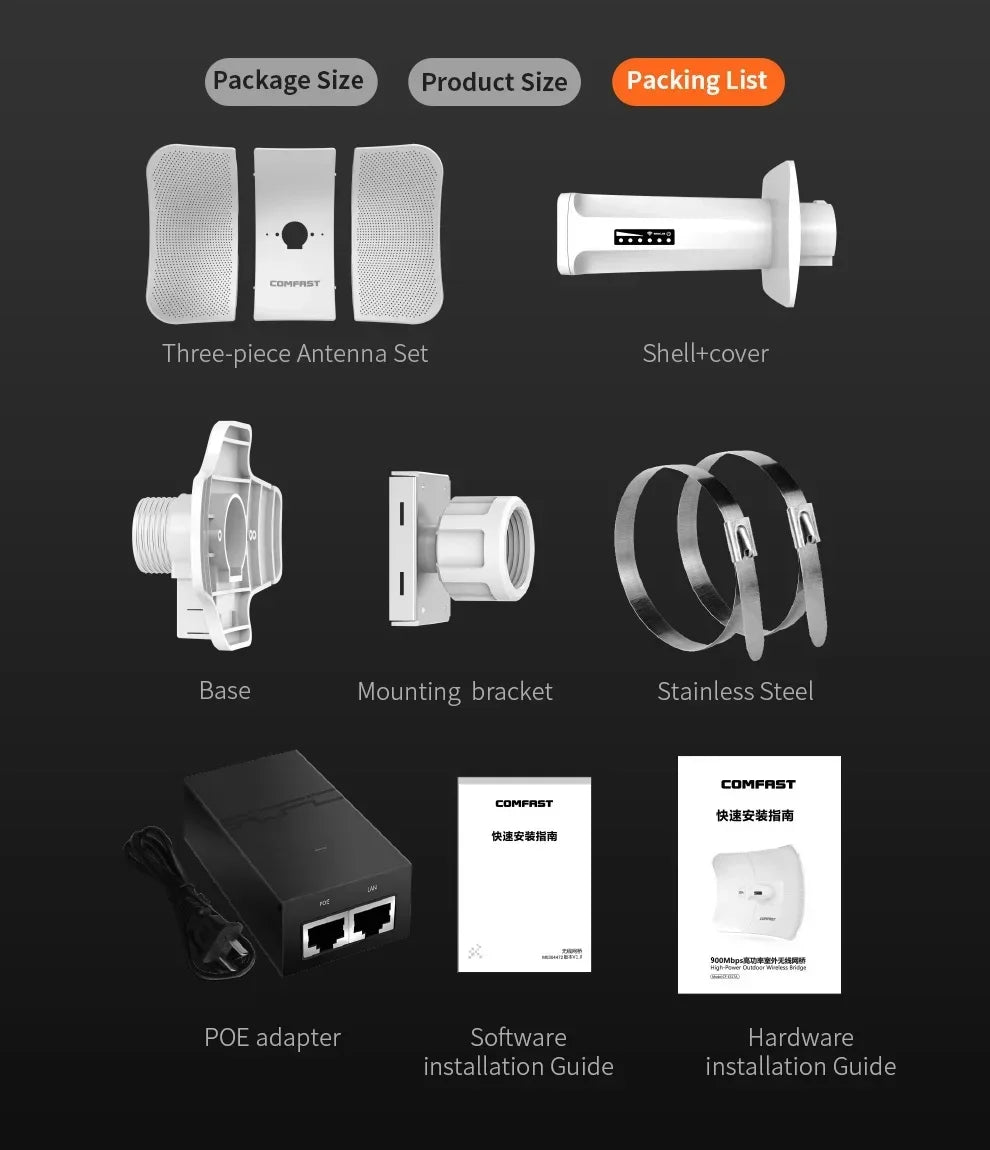

Package included :
CF-E319AV2 CPE *1 or 2
Base * 1 or 2
Mounting bracket * *1 or 2
Stainless Steel *1 or 2
Poe Adapter *1 or 2
Software Installation Guide *1 or 2

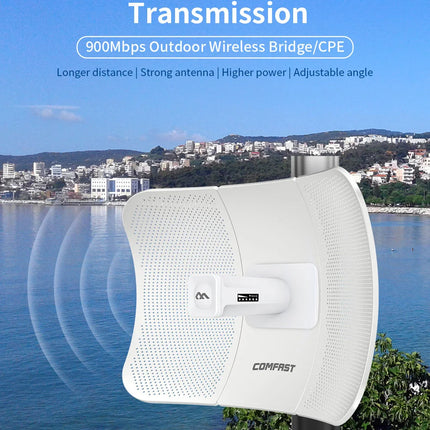

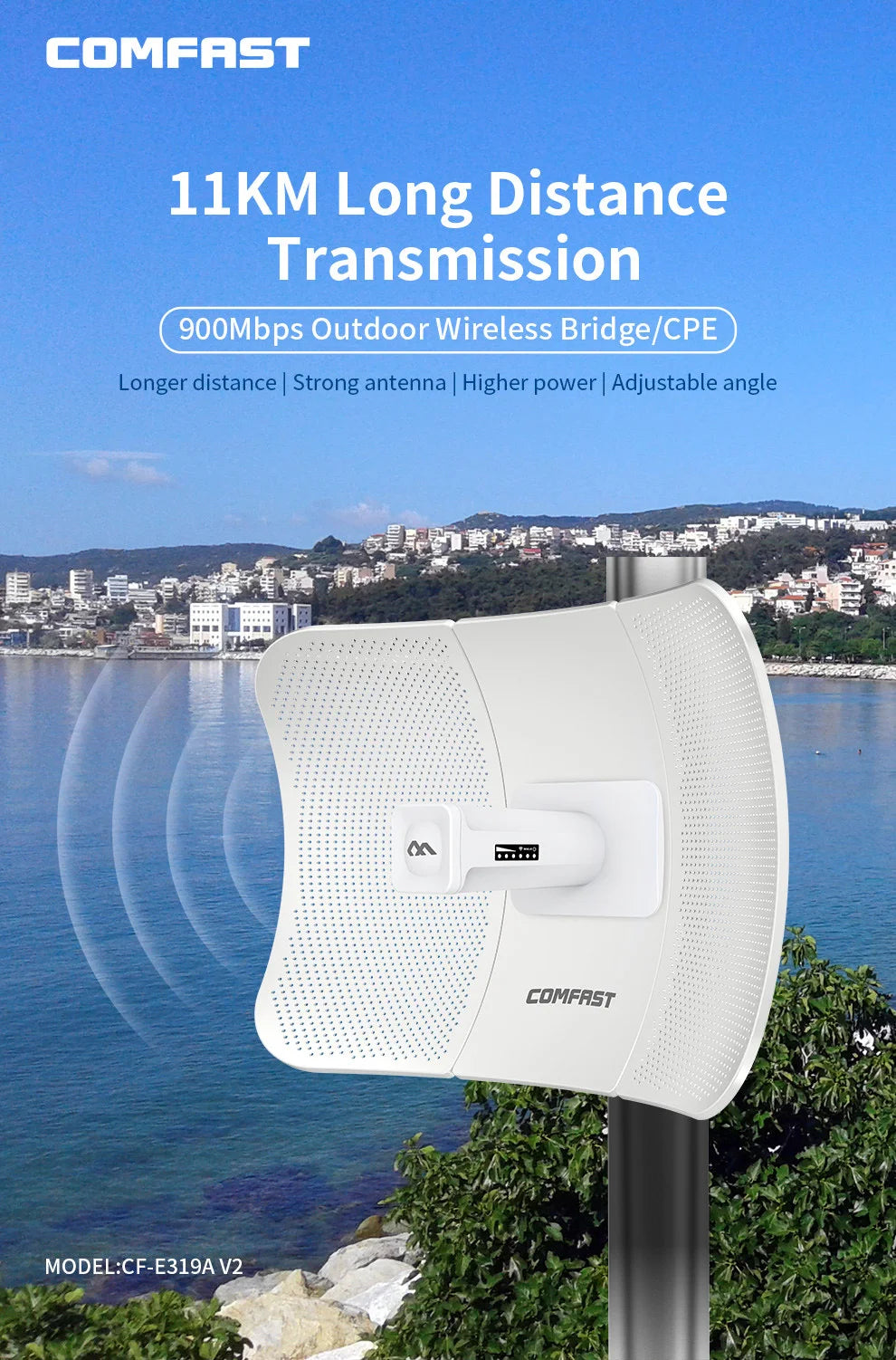

11KM Long DistanceTransmission
900Mbps Outdoor Wireless Bridge/CPE
Longer distance I Strong antenna I Higher power | Adjustable angle
Excellent performance , Advantage realization
( COMFAST Nine Advantages of Wireless Bridge )

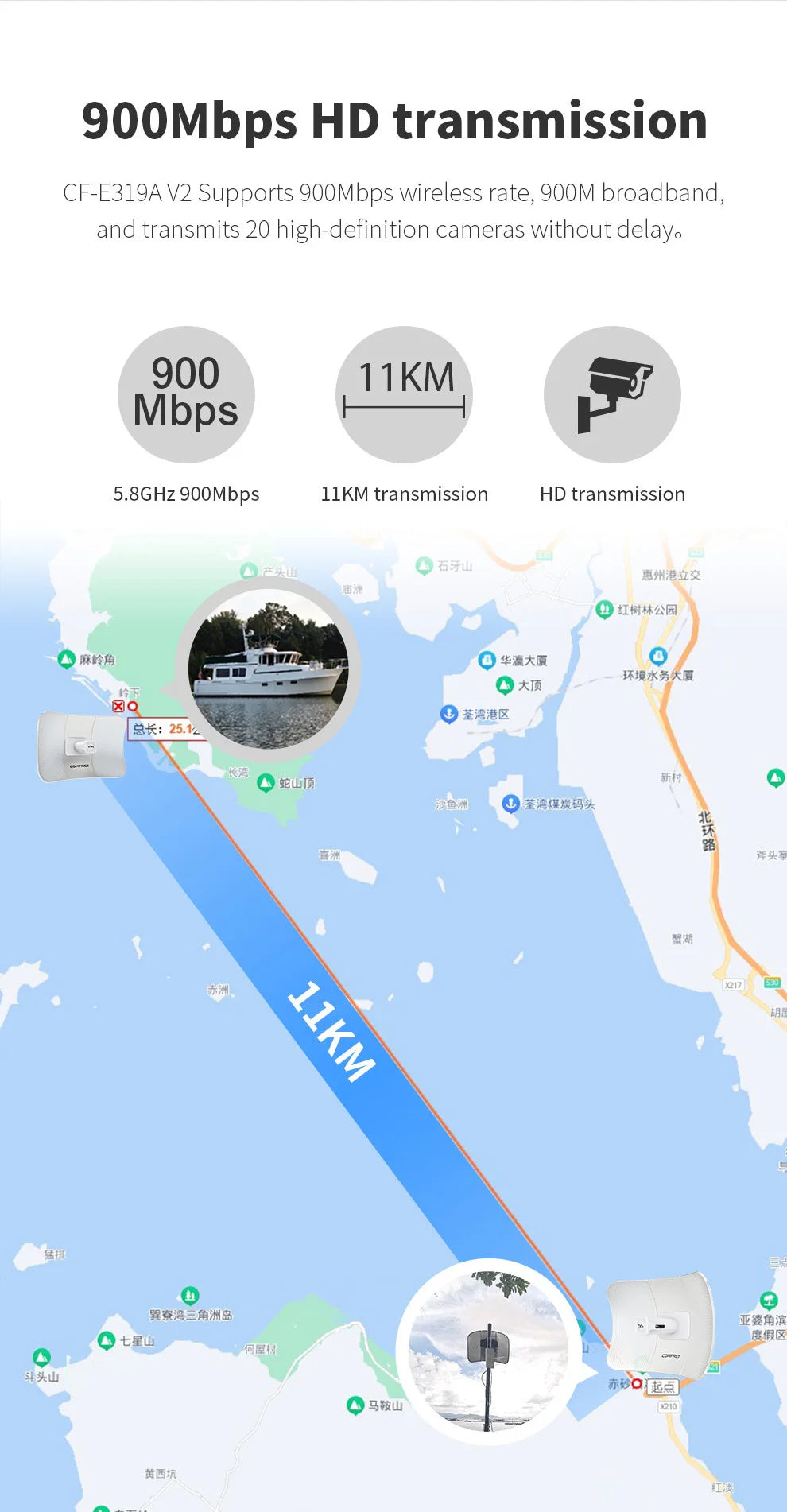

900Mbps HD transmission
CF-E319A V2 Supports 900Mbps wireless rate, 900M broadband,and transmits 20 high-definitioncameras without delay。

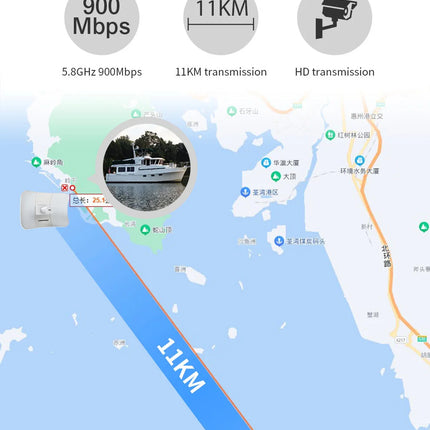

5.8GHz 900Mbps / 11KM transmission / HD transmission
The Measured TransmissionReaches 11KM Kilometers
Qualcomm chipset, together with PA can improve the transmissionpower The measured transmission distance in an open environmentis about 11KM

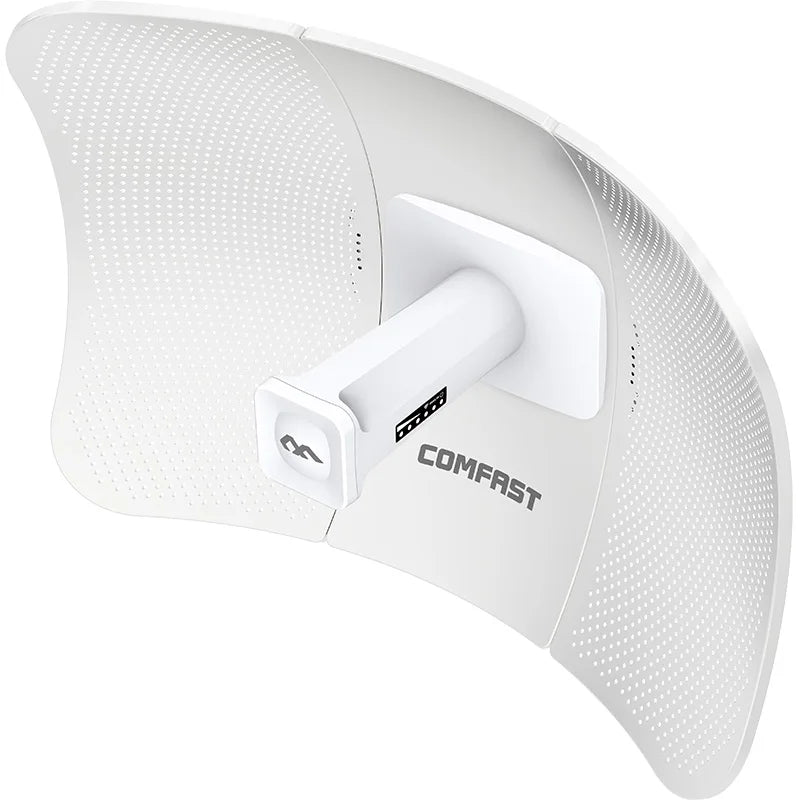

Butterfly Shape HighPower Antenna
Using 26dBi high gain directional butterfly shape antenna to exclude interference, not only the signal is strong, but also suitable for long distance connections
Metal paraboloid,sensitive to receiving
2* 2MIMO, improved the transmission efficiency
5.8GHz Effective Anti-interference
There are too manydevices in the 2.4GHz band and cause serious interference,CF-E319AV2 work under 5.8GHz, the interference is less and works more stable
Industrial design
1、Wind resistance antenna reflector
The reverse design of the through-hole antenna isadopted to effectively reduce wind resistance andresist stormy weather, and the product adaptability to the environment is greatly improved
2、Led indicator is easy to adjust
Equipped with signal status indicator, which is convenient for users toadjust the angle of the device, and the signal status is clear at a glance
Three lights are on,the signal is strongest
Wifi indicator flashing,Wireless data transmission
WAN/LAN indicator flashing, Network transmission data
Power light is on, the device is connected
3、The leveldesign
The level design can help users quickly judge whether theinstallation angle is accurate, and it is clear at a glance
4、Installation clip, flexible rotation
The innovative design of the installation clip, the bridge can berotated and adjusted at any angle, which greatly enhances theflexible application of the project

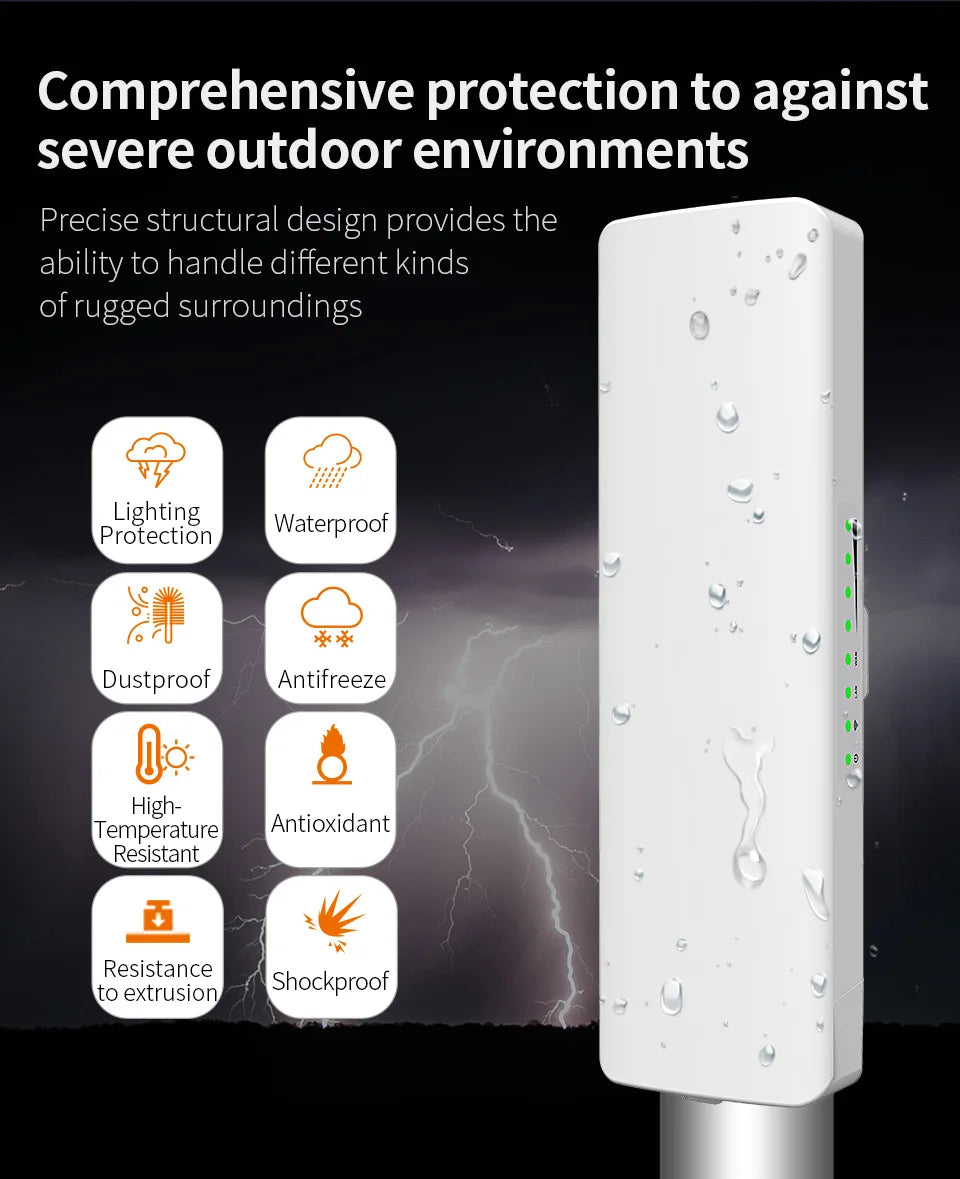

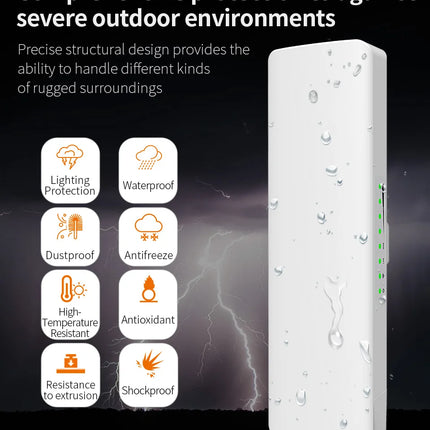

Outdoor IP65 RatingProvides, The Abilityto Handle DifferentKinds Of RuggedSurroundings
Lightningprotection
Waterproof
Antifreeze
Dust Proof
High TemperatureResistance
Ant-oxidation
POE Power Supply
CF -E319A V2 support POE power supply,It can support 100 meter long networkcable for power supply and data transmission at the same time. It ismore convenient to get electricity for outdoor projects, free from the shacklesof power supply problems. Makes project easier.
Hide SSID, Refuse to Backup The Network
The wireless bridge supports SSID broadcast hiding, which can easily solvethe troubles of the backup network and ensure the stability of the project
Applicable Scenarios：
Farming monitoring / Forest monitoring / Driving school monitoring / Road monitoring / Scenic spot monitoring
Site monitoring
Network Application Scenarios：
Cell network transmission / Scenic network transmission / Network transmission in remote areas
Schematic Diagram ofWireless Bridge Connection
01 /Point to point connection
Multiple camera connection: method 1: Connect the camera to the switch,then connect to the comfast bridge, and transmit data through theone to-one bridgeone- to-one bridge
02 /Multi point to Multi point connection
Multiple cameras connection method 2: If the cameras are far apart, you can configure a pair of bridges for each camera, and the monitoring center uses a switch to connect the AP terminalstogether and then connect to the hard disk video recorder
03 /Point to Multi point connection
If the angle between the location of the camera and the monitoringcenter is less than 120 degrees, point-to multipoint can be consideredto reduce the cost of the transmitter bridge, but the prerequisites need to meet the angle and broadband requirements
In the wireless monitoring transmission, it is recommended to use the ilustratedmethod forpoint- to point or point: to multipoint transmission. The transmissionangle of the wireless bridge is 120 degrees. In the point-to point transmission,please adjust the angle of the device

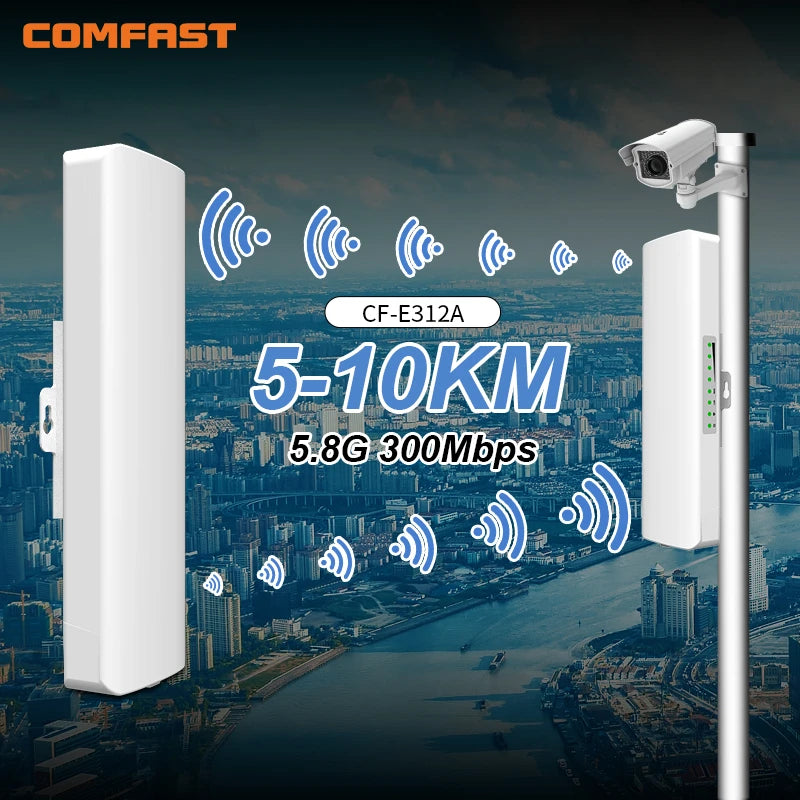

CF-E312AV2 Specificiation
5-10KM long range wifi transmission outdoor wireless CPE
3km transmission distance 11dbi High gain antenna 5.8Ghz Anti-interference
300Mbps High Rate transmission outdoor protection Grade standard Qualcomm Chipset Excellent Performance
