Description
SPECIFICATIONS
Brand Name: JEYI
Case Material: aluminum
Choice: yes
External Interface: USB
High-concerned chemical: None
Model Number: i9x-Zebra
Origin: Mainland China
Package: Yes
Size: 1.8"
Supporting Hard Drive Capacity: 2TB
i9x-Zebra New Features （i9x not supported）
5 clicks to turn on write protection (exit requires unplugging the cable again)
All-aluminum body with multiple grooves to effectively increase the cooling effect

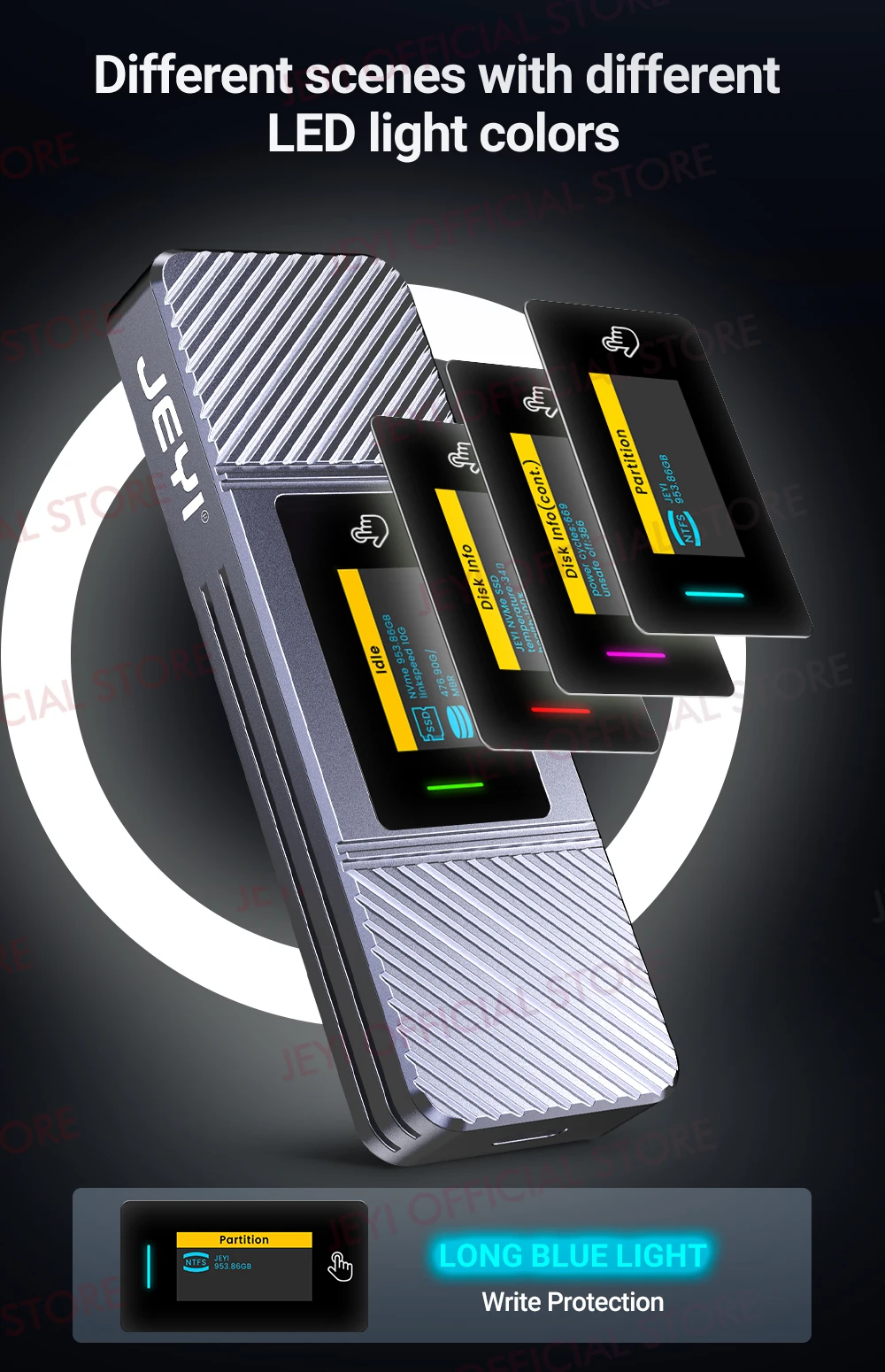

Multi-color LEDs

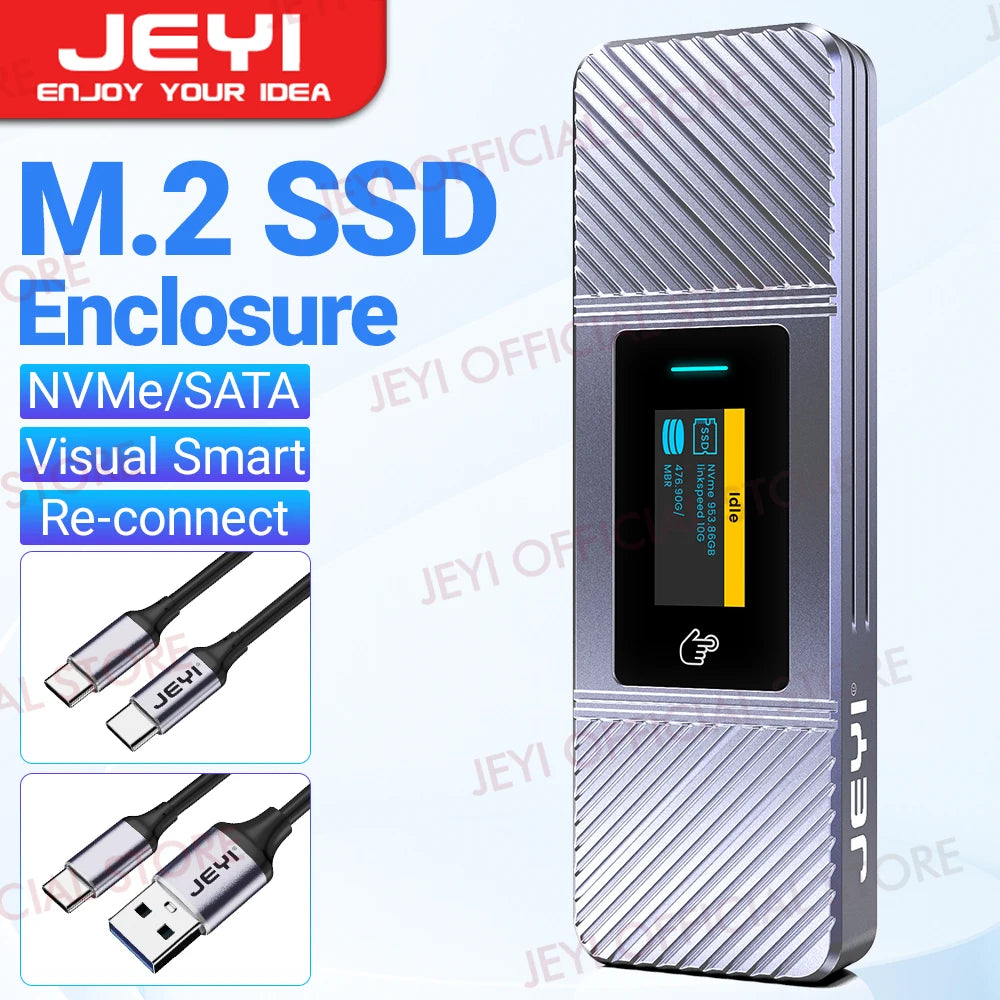

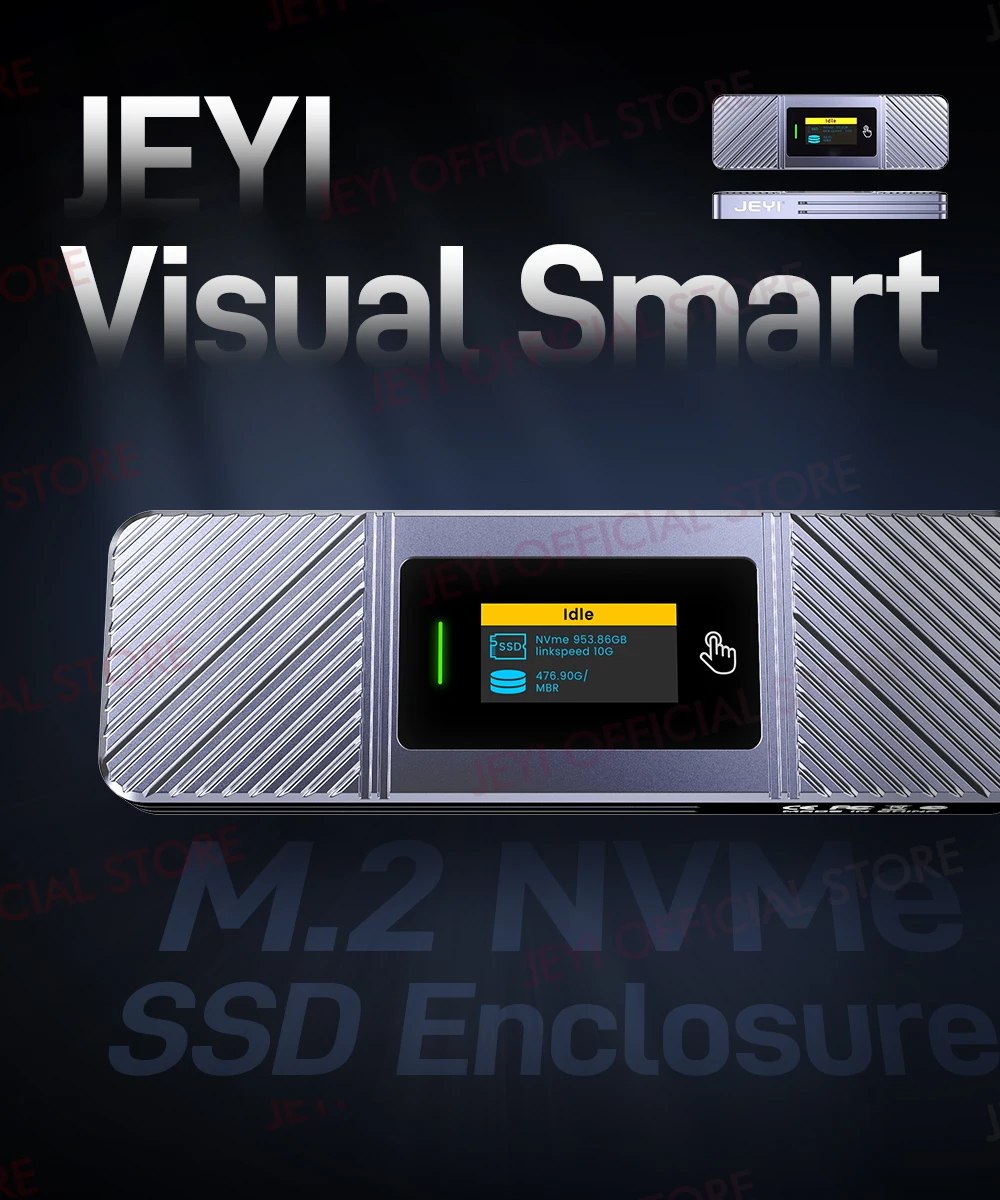

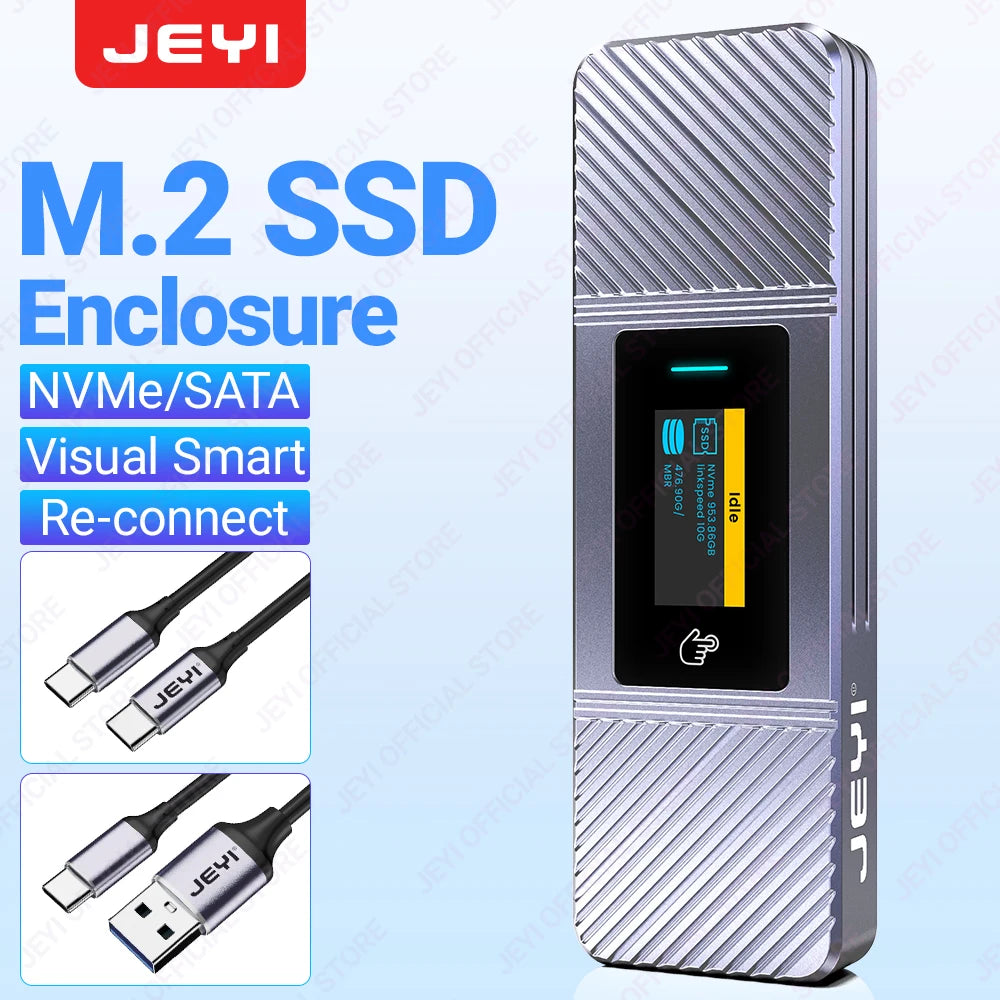

JEYI i9X Display Visual Dual M.2 Protocol SSD Enclosure
JEYI i9X-Zebra display visual Dual M.2 protocol NVMe NGFF SSD enclosure
Supports TRIM, ASPM, UASP acceleration, and sleep mode
Plug-and-play, allowing data transmission across multiple devices such as desktops, laptops, cell phones, tablets, cameras, etc. at high speed across platforms and scenes
JEYI insists on using the high cost superconducting thermal conductivity pad and all-aluminum heat dissipation method to prevent the disk from being "baked" in the enclosure and reducing the life of the disk.
JEYI i9X can read and write for a long time with high intensity, which is suitable for professional-level uninterrupted applications. Can run Win To Go, VmWare virtual machine for a long time, large games, large 8K RAW video editing and other high-intensity professional applications

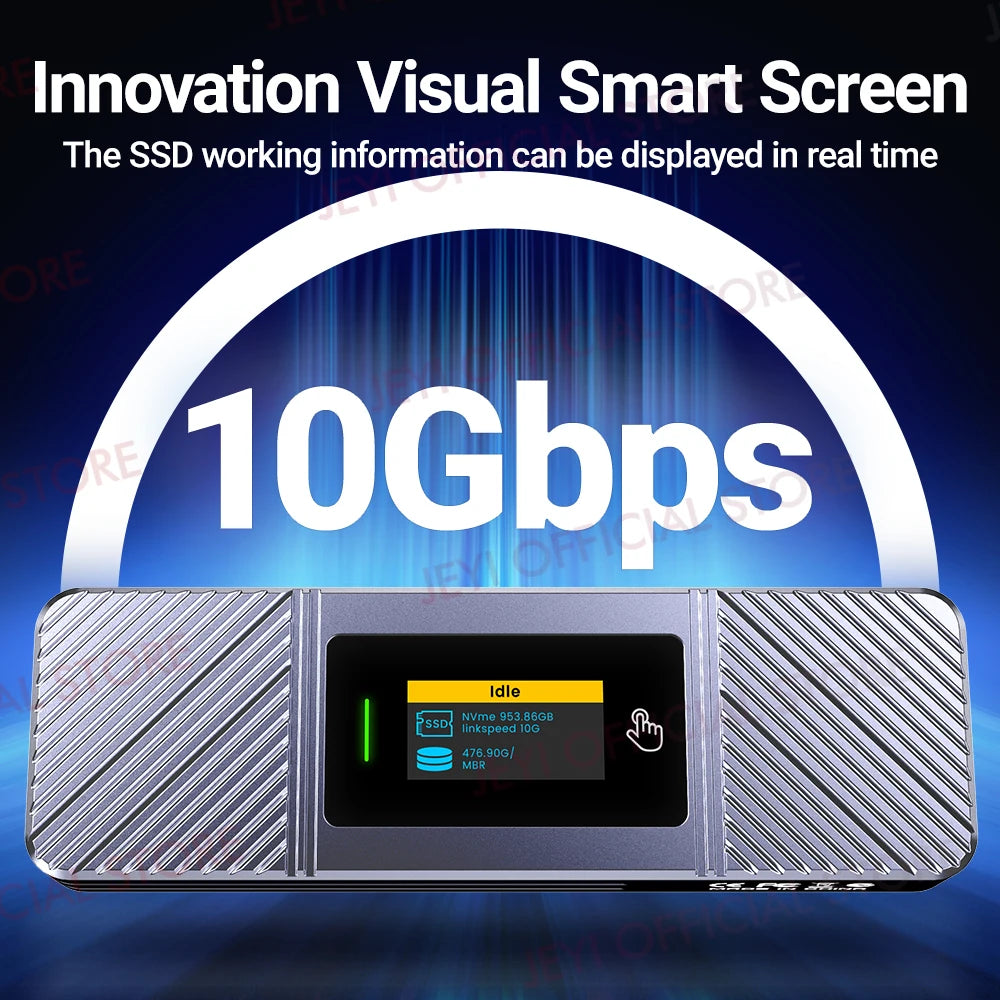

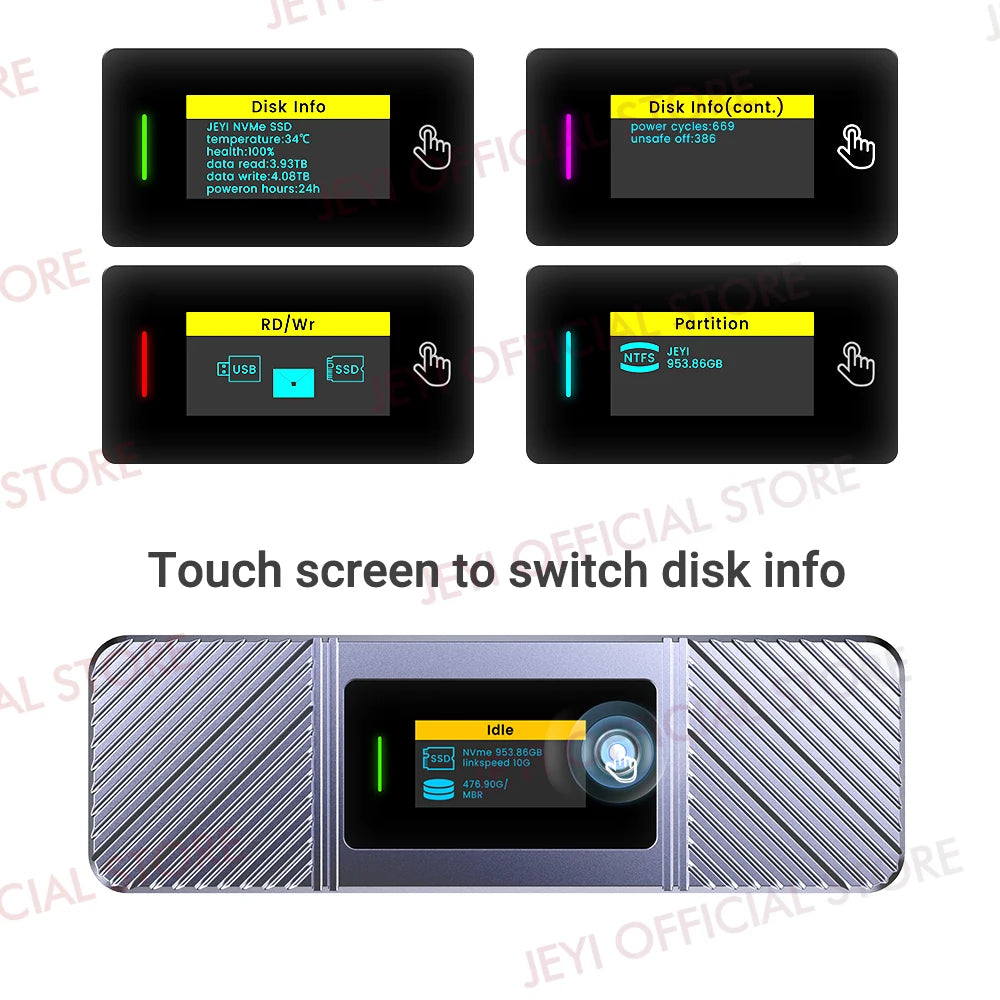

It Can Also Display
Disk Model
Capacity of the Disk
Partition of the Disk
Disk Temperature
Total Host Reads
Total Host Writes
Power on Hours
Power on Count
Unsafe Shutdowns
Health Status Percentage
Current Connection Speed
USB2.0 480M or USB3.2 GEN1 5G or USB3.2 GEN2 10G
Long blue light - write protection

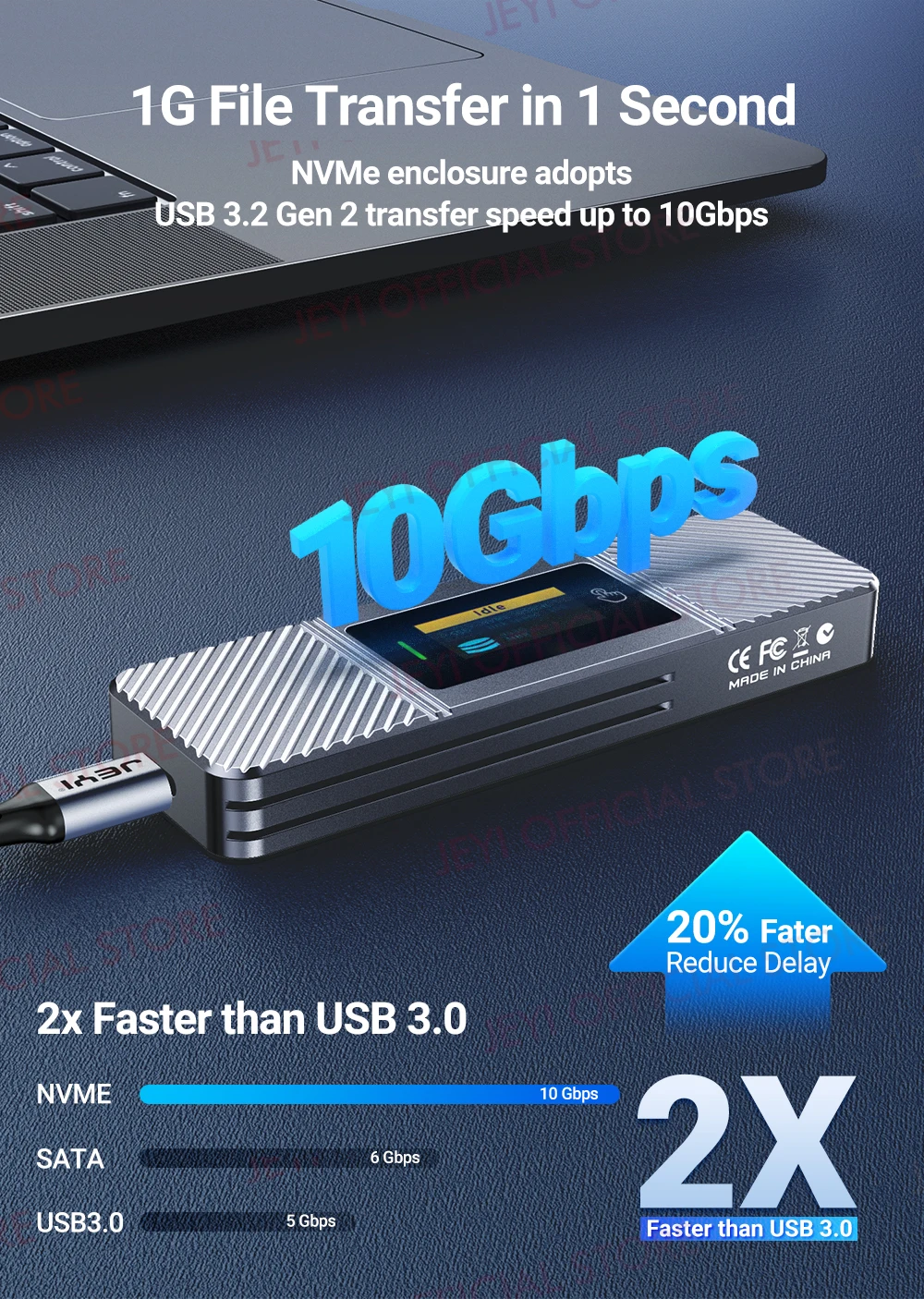

1G File Transfer in 1 Second
NVMe enclosure adopts USB 3.1 Gen 2 transfer speed up to 10Gbps
NOTE: SATA SSD ONLY SUPPORT 6Gbps (600Mb/s Max)

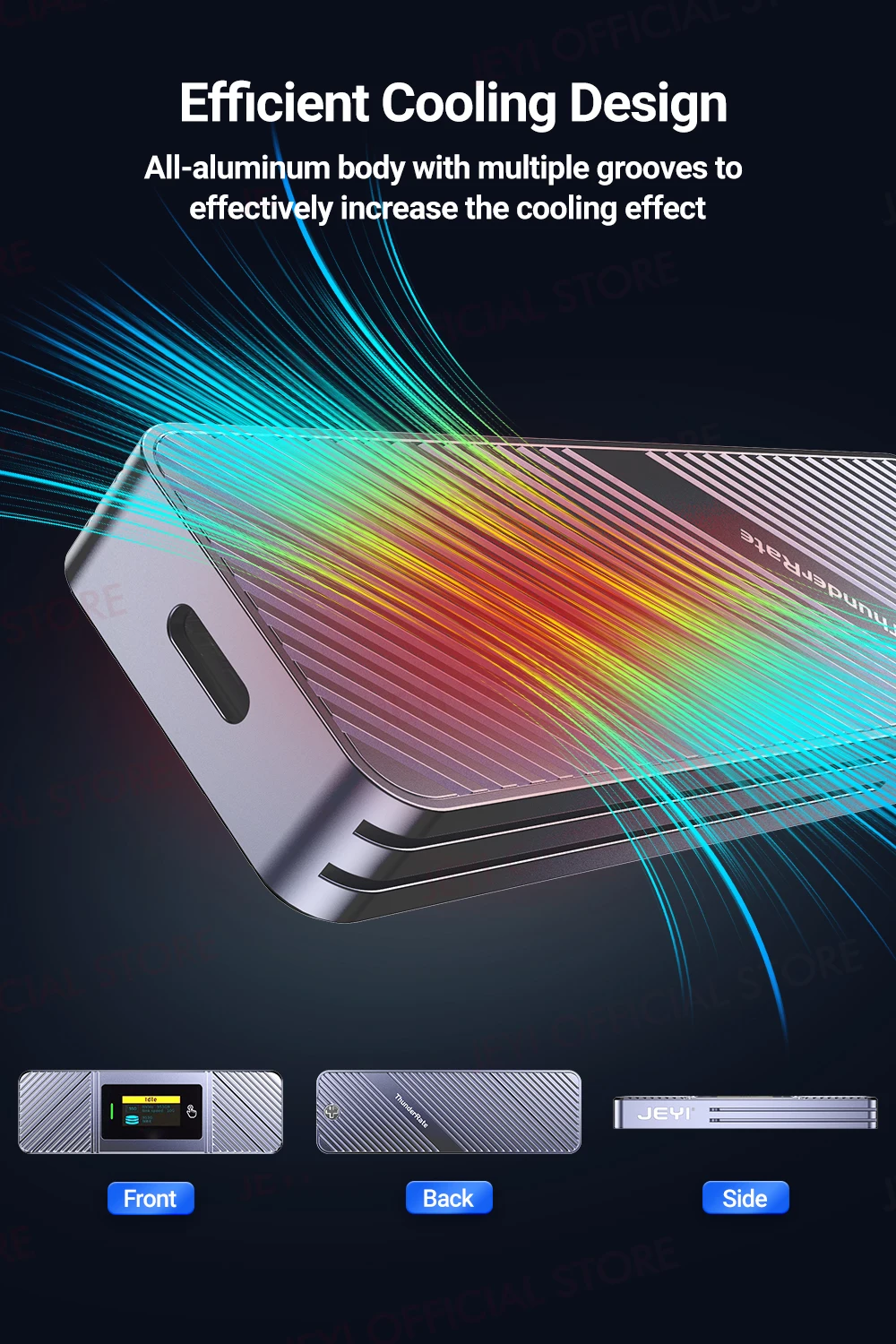

Efficient cooling design
All-aluminum body with multiple grooves to effectively increase the cooling effect

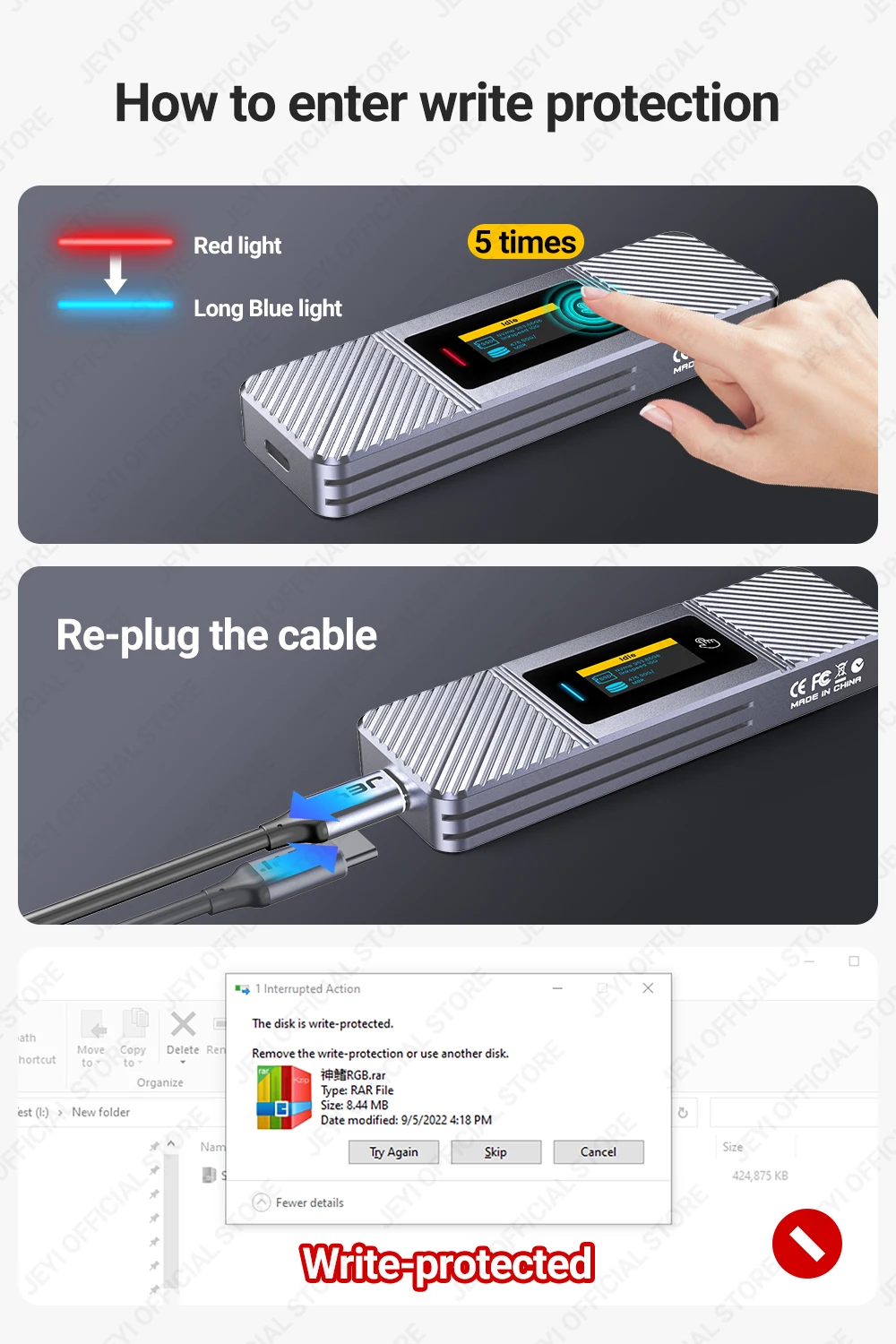

How to set write protection
Enter write protect: touch the screen 5 times, then re-plug the cable to enter protect mode (red light to long blue)
Exit write protect: touch the screen 5 times, then re-plug the cable exit protect mode (long blue light to red light)
Note: Write protection with memory function, so as long as you don't exit the write protect function, it will remain in protected mode

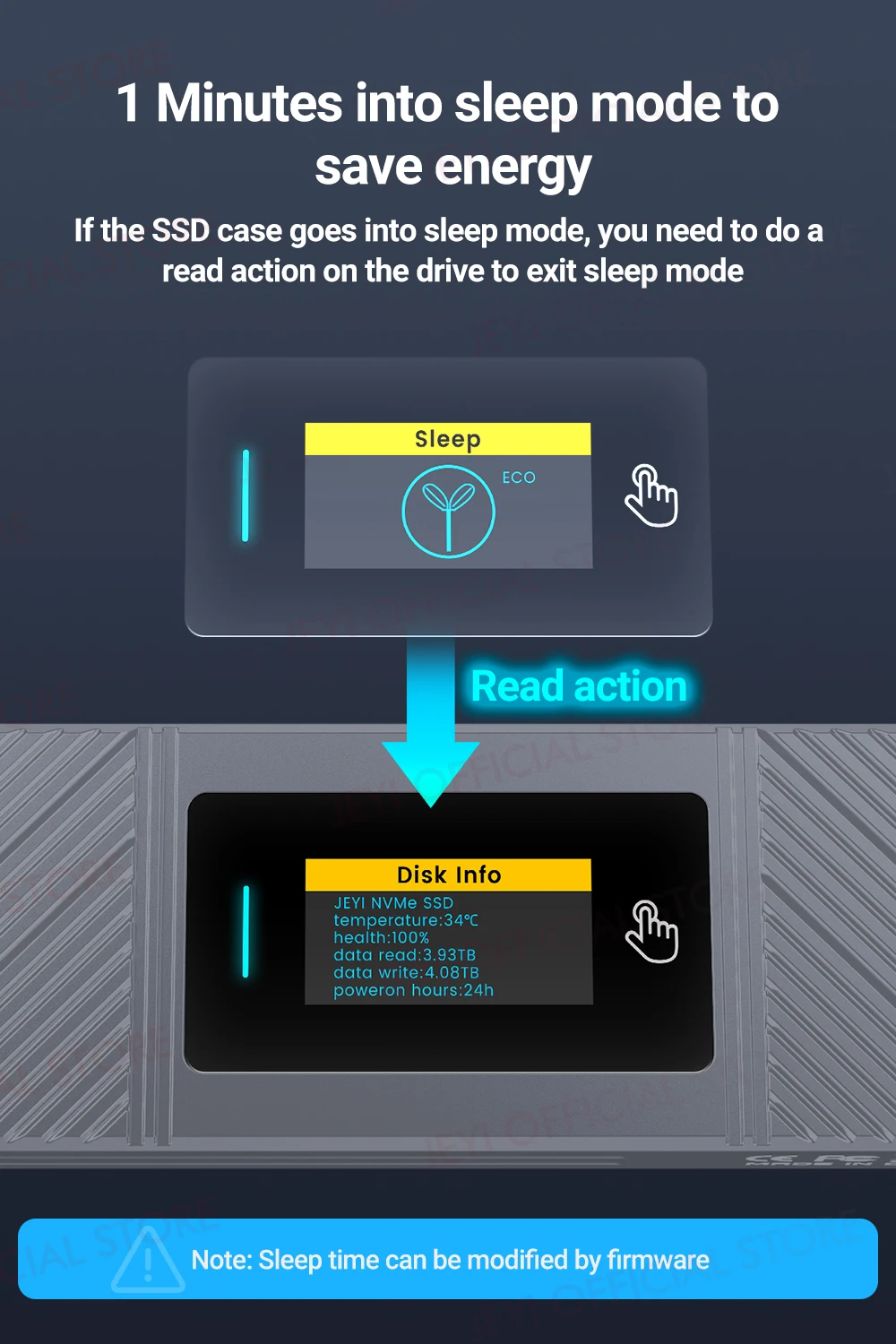

1 minutes into sleep mode to save energy
If the SSD case goes into sleep mode, you need to do a read action on the drive to exit sleep mode.
Note: Sleep time can be modified by firmware

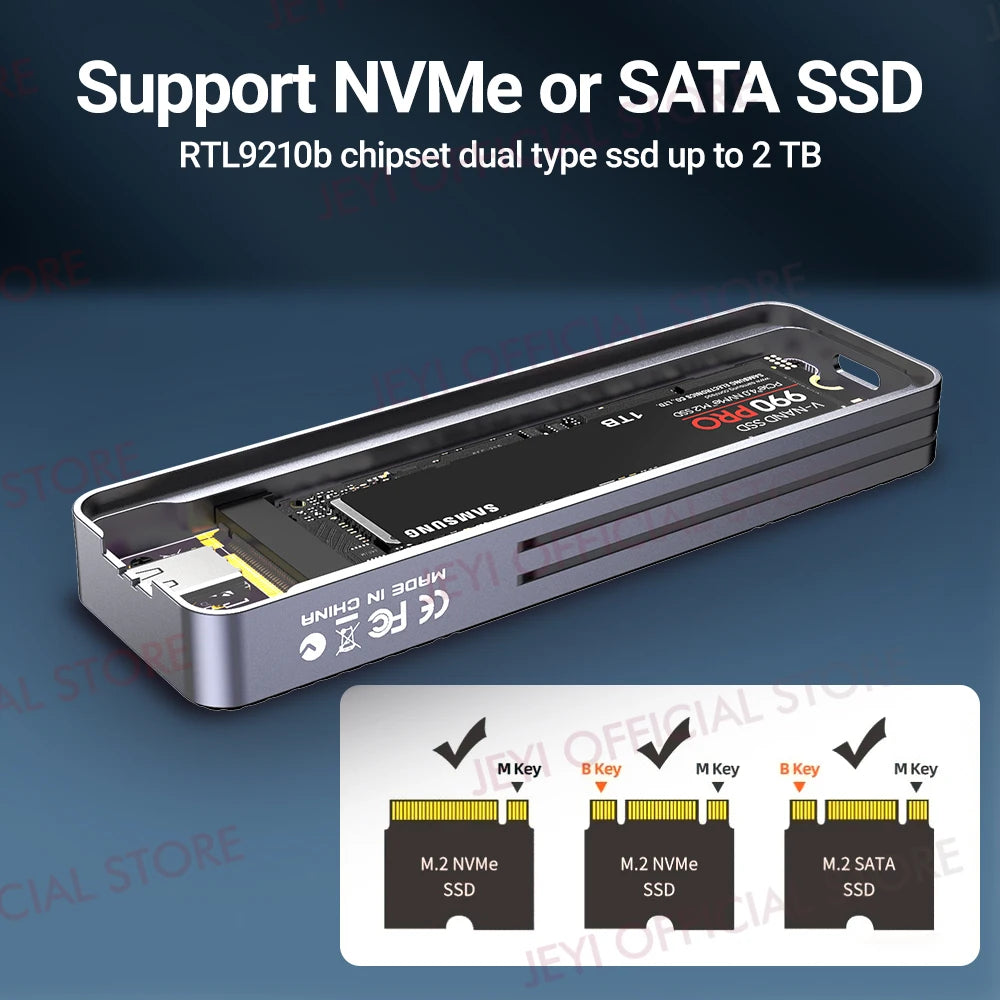

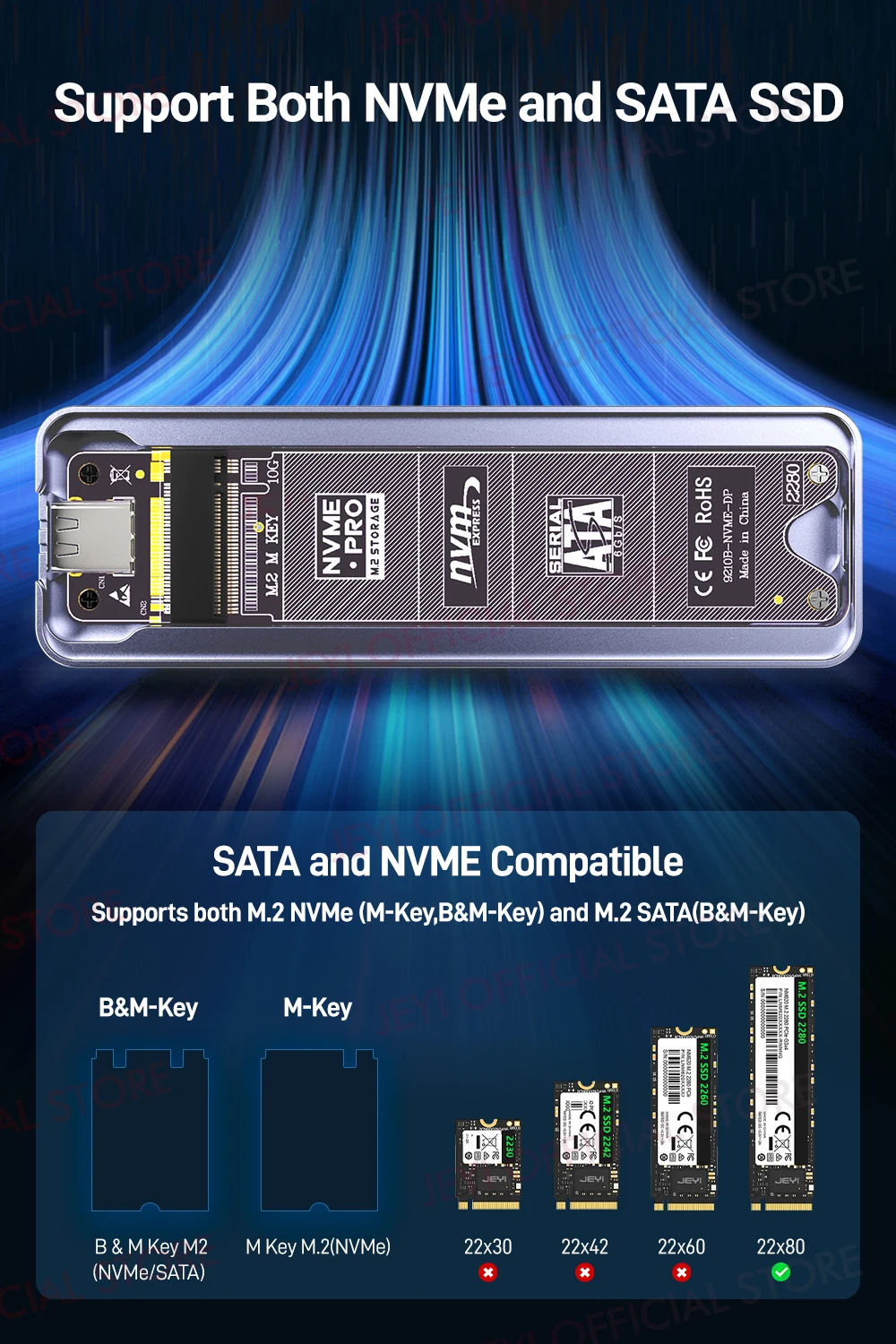

Support Both NVMe and SATA SSD
Supports both M.2 NVMe (M-Key,B&M-Key) and M.2 SATA(B&M-Key)

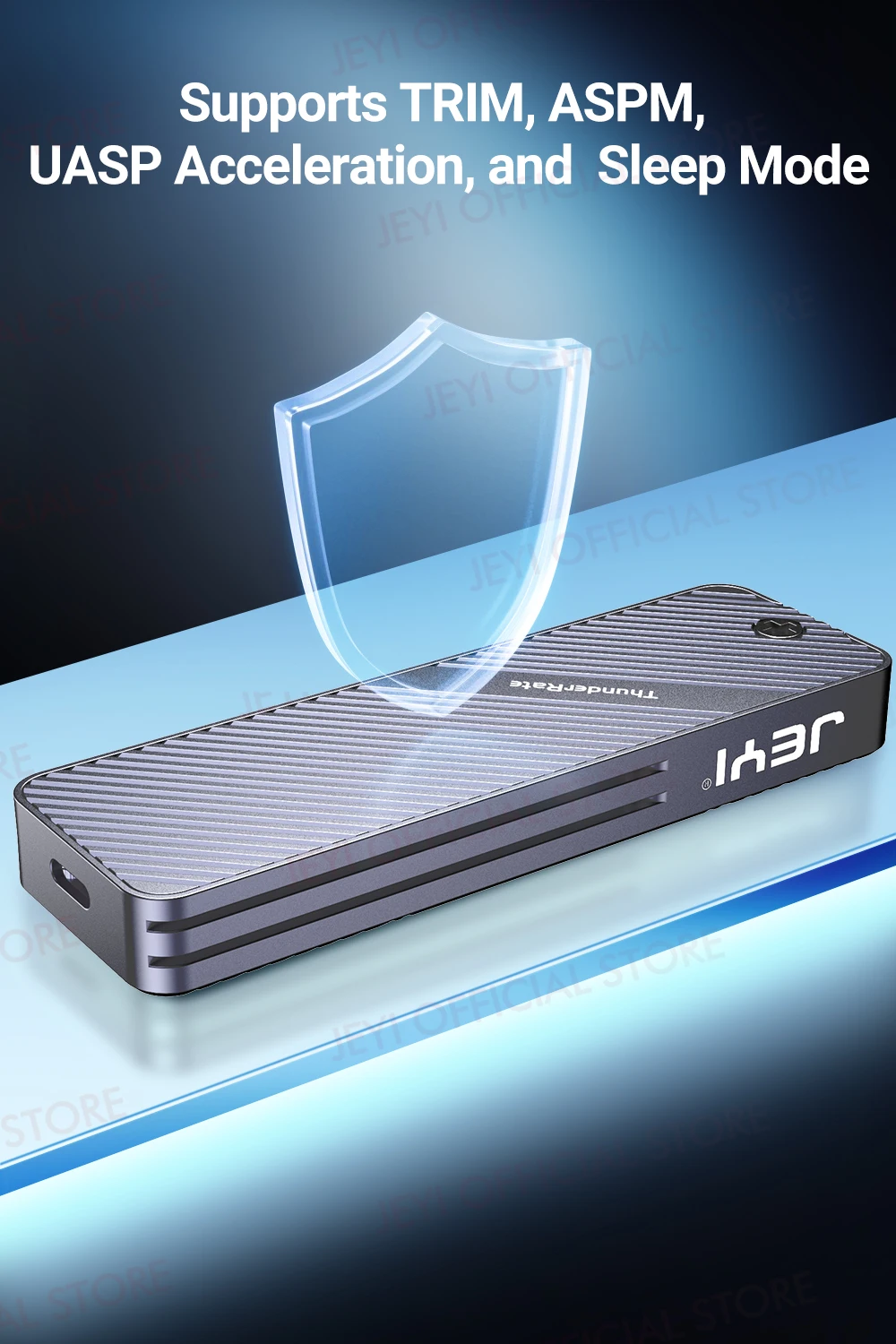

Supports TRIM, ASPM, UASP Acceleration, and Sleep Mode

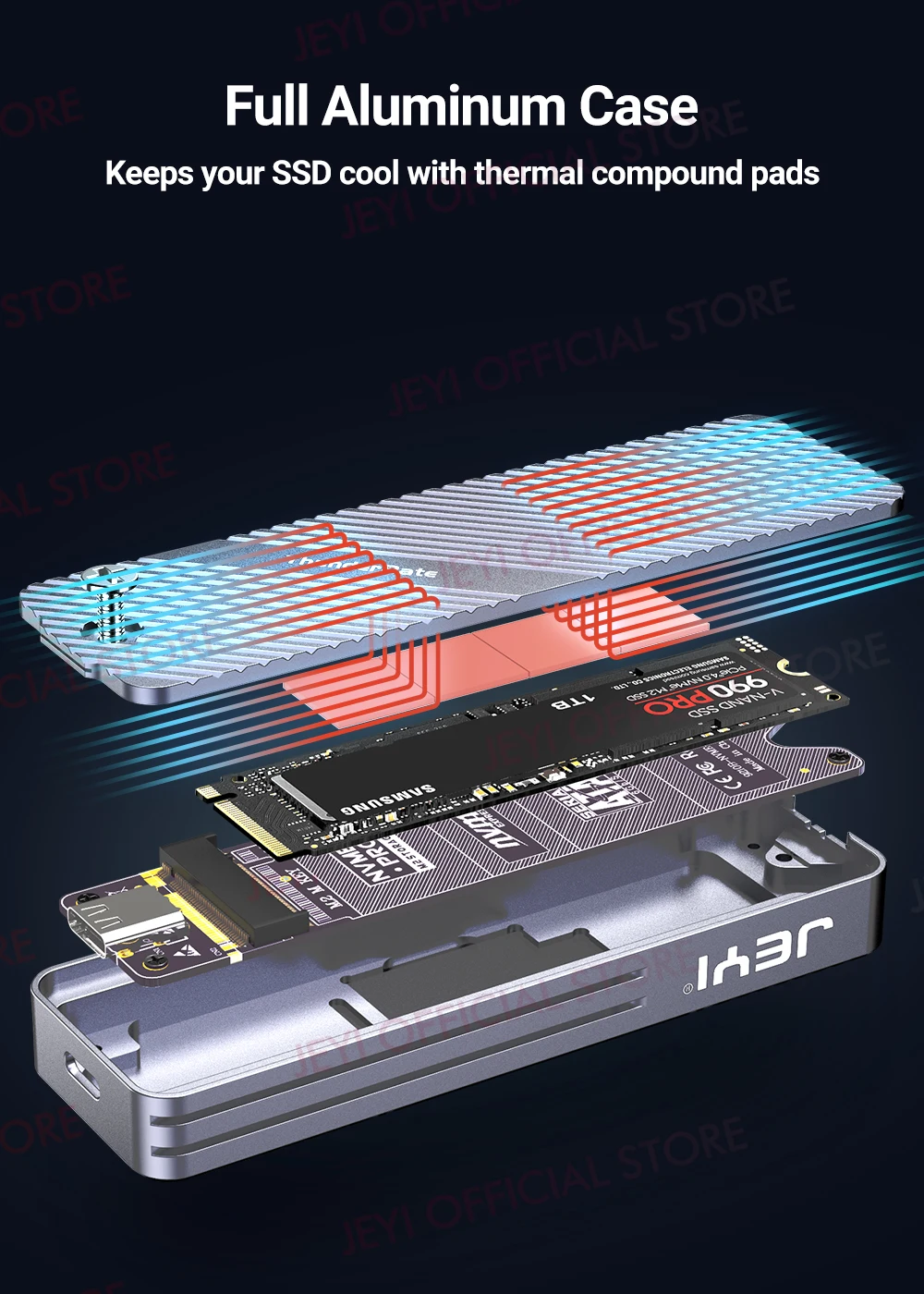

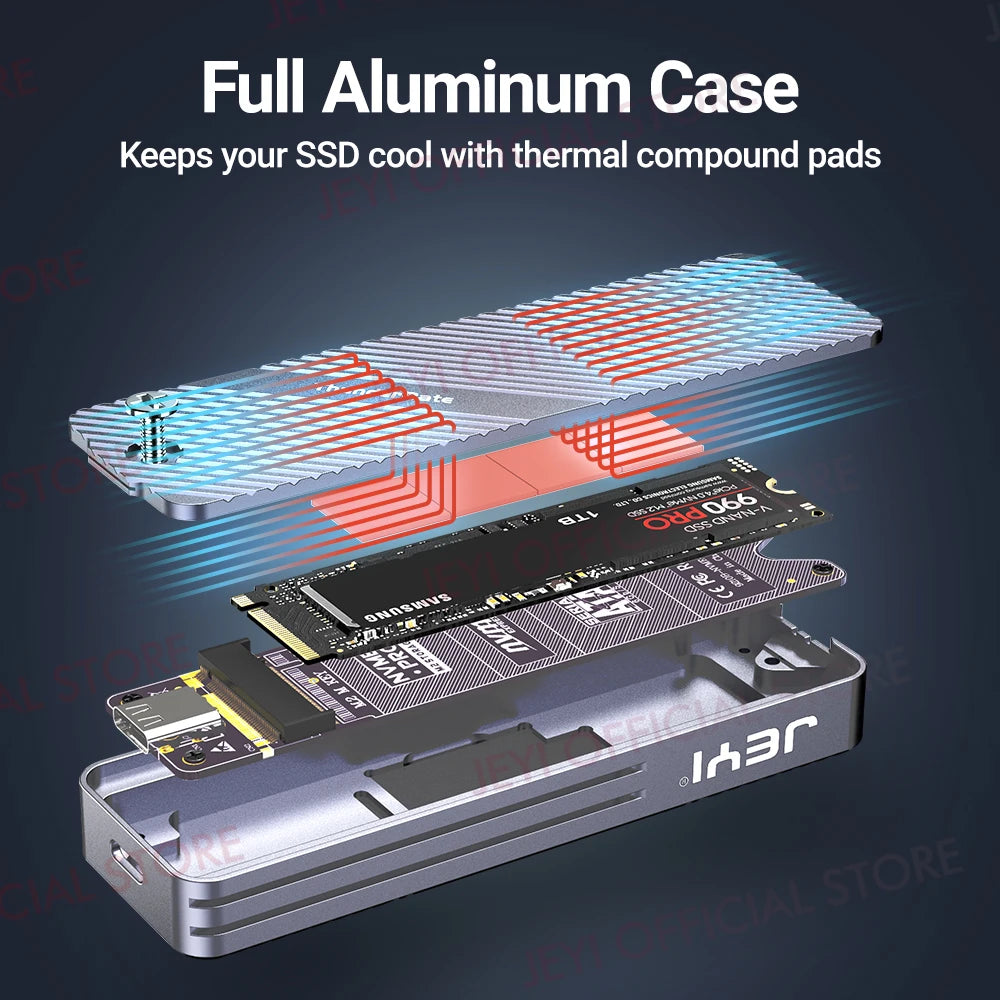

Full Aluminum Case
Keeps your SSD cool with thermal compound pads
Two Cables Inside (Gift)
1pcs TYPE C To C USB 3.2 Gen2 Cable
1Pcs TYPE A To C USB 3.2 Gen2 Cabl

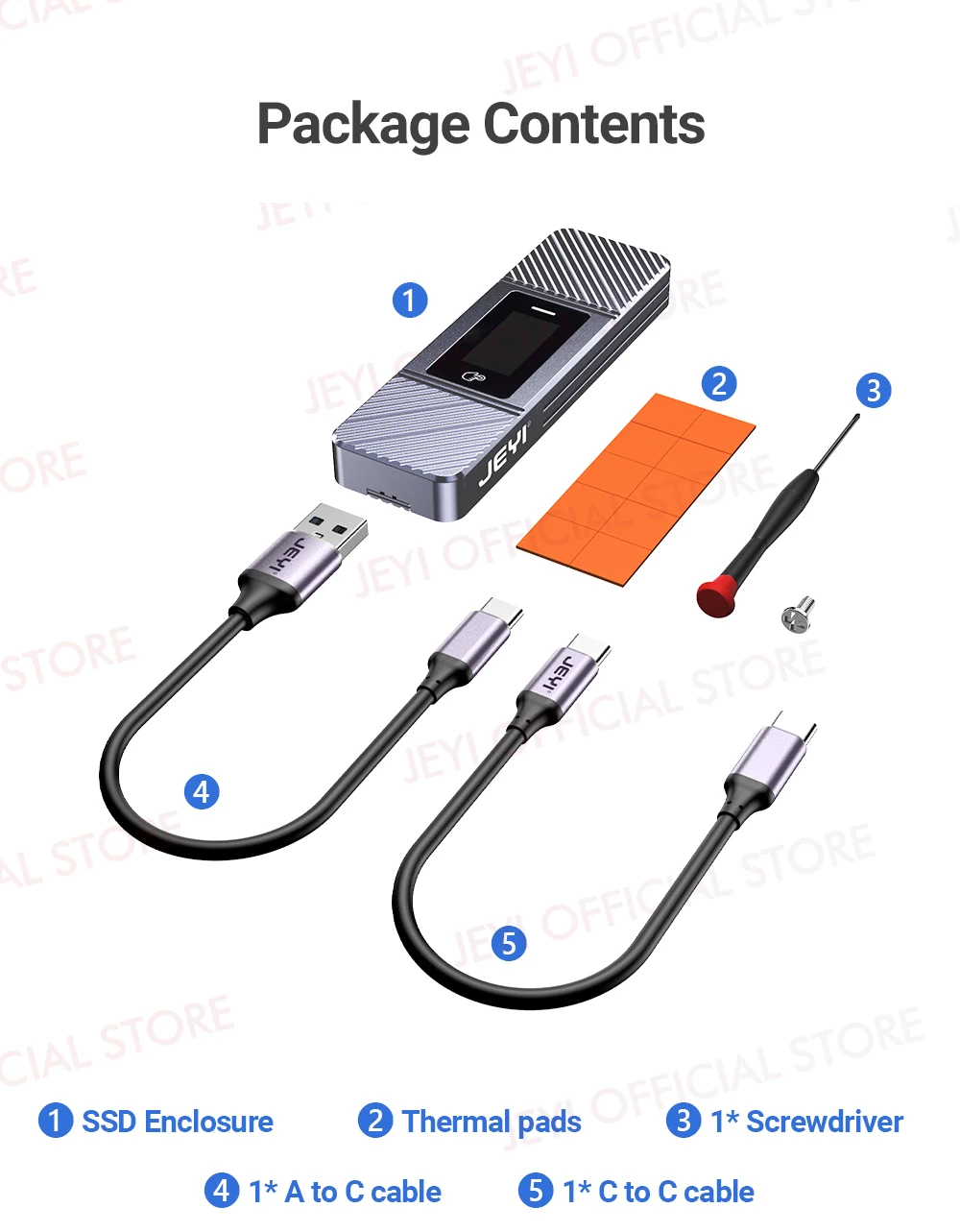

Package Contents
1pc NVMe/SATA SSD Enclosure
1Pc Screwdriver
1Pc C to C Cable
1Pc A to C Cable
10Pcs Thernal Pads
