SPECIFICATIONS

1. Support 6 working modes: pulse interface (open loop, closed loop, Foc mode), serial interface (open loop, closed loop, Foc mode)

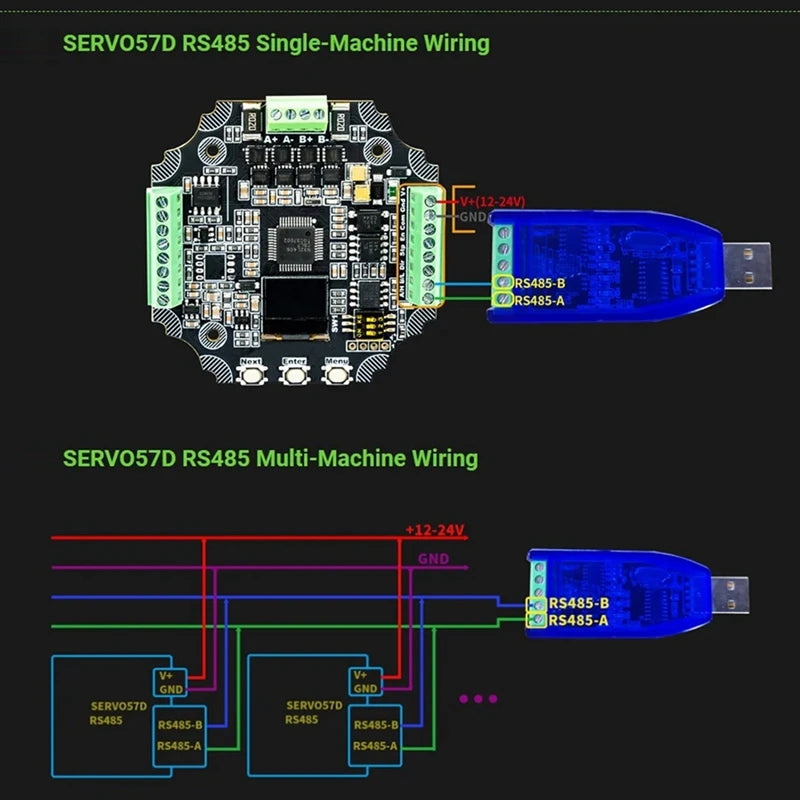

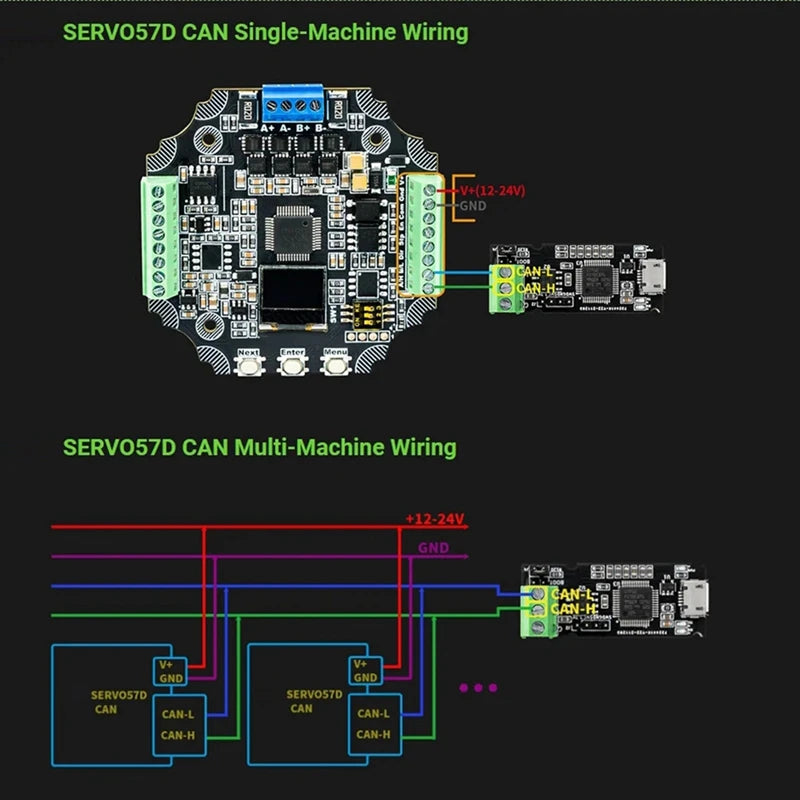

2. Support CAN/RS485 interface
3. Support MODBUS-RTU communication protocol
4. Support curve acceleration and deceleration
5. Support limit switch to return to zero
Support speed mode, relative position and absolute position control mode
Support 1-256 arbitrary subdivision, support arbitrary working current setting
The maximum input pulse frequency is 160KHz, and the maximum speed is 3000RPM
Support multiple motor synchronous working modes
Aluminum alloy shell

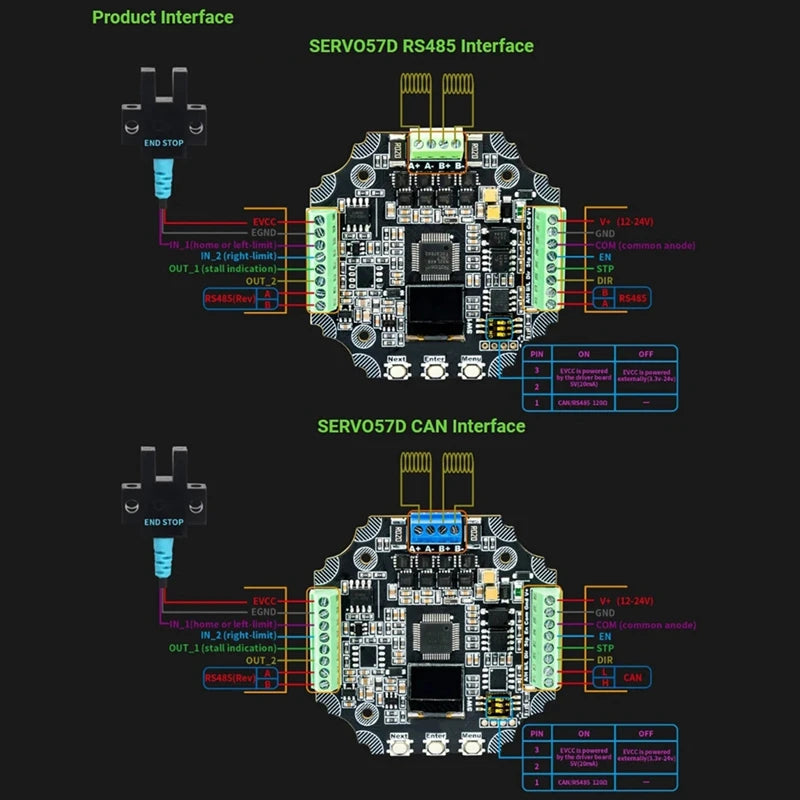

Note:
if the (STP/DlR/EN)signal high level is 3.3vthe CoM must be 3.3V
if the (STP/DIR/EN)signal high level is 5.0Vthe coM must be 5.0V
and so on.
Note:Due to different production batches, there may be slight differences in products.

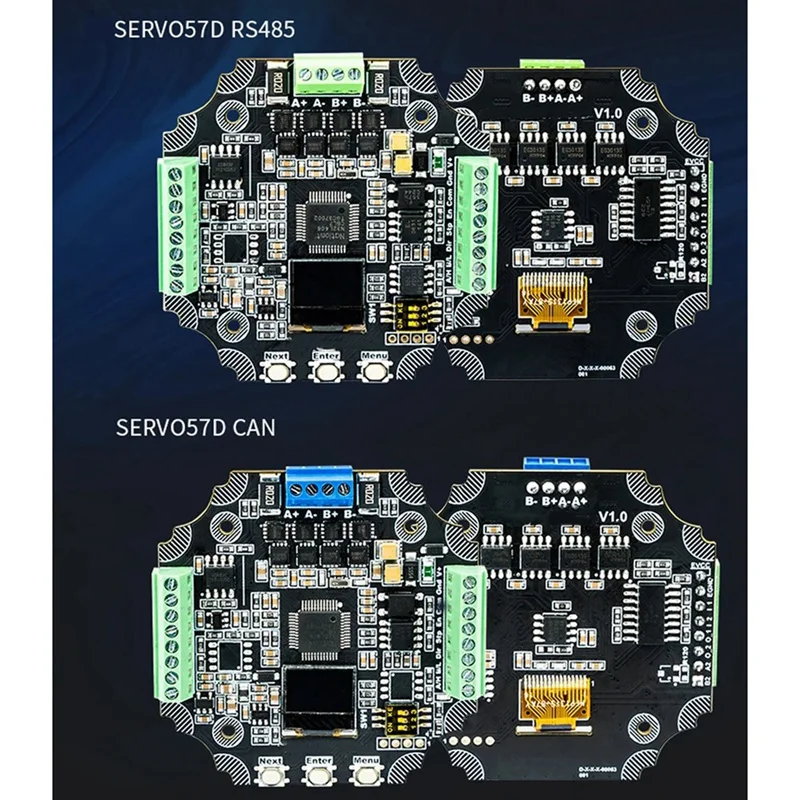

Type:CAN/RS485
Colour:As Shown
Material:ABS

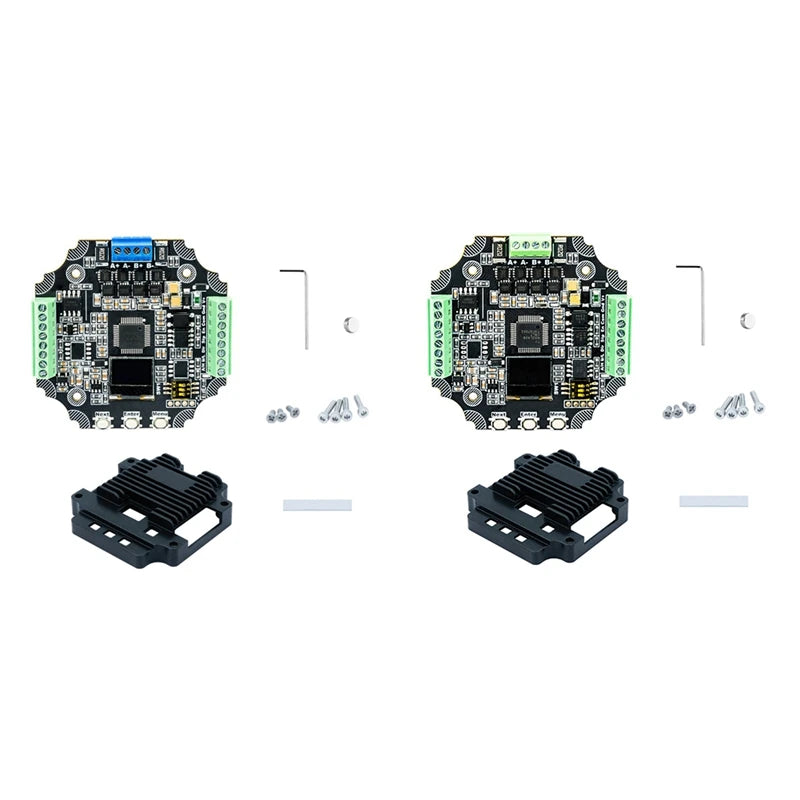

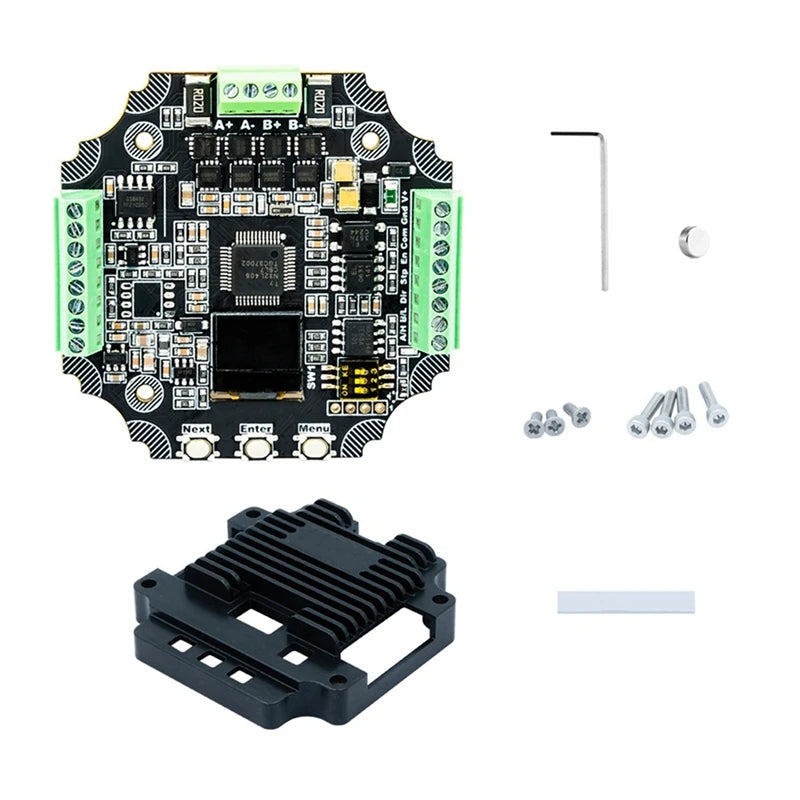

Package Contents:
1 * stepper motor Drive

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
