SPECIFICATIONS

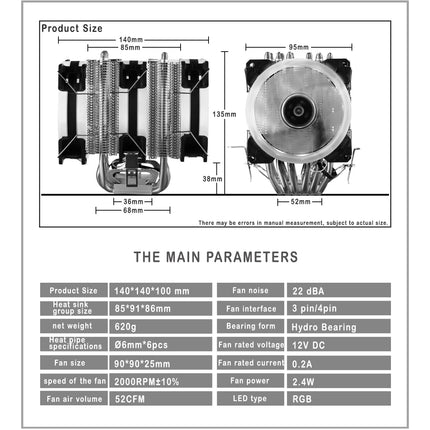

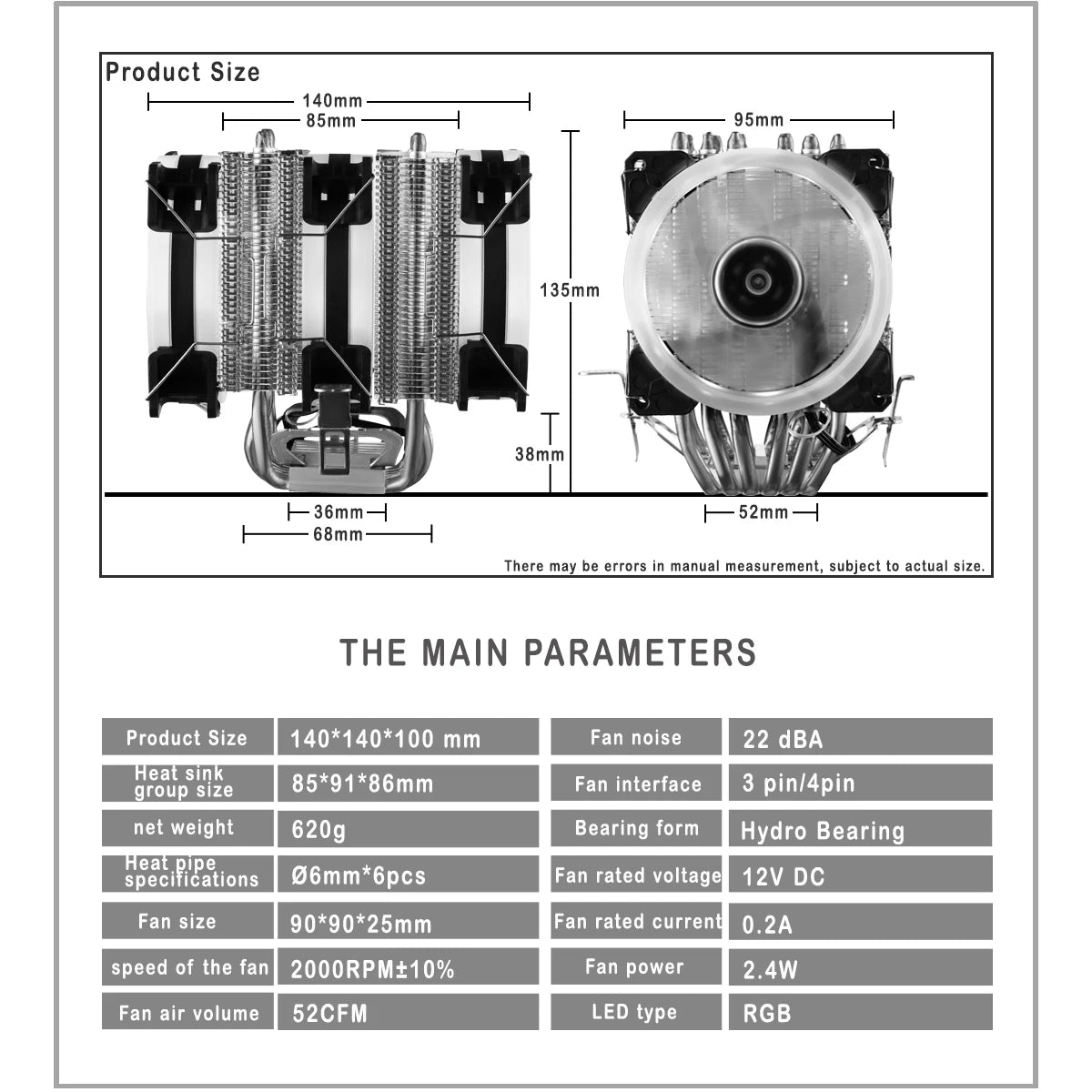

Product Size:140*95*135mm

Heat sink group size:85*91*86mm

net weight:620g

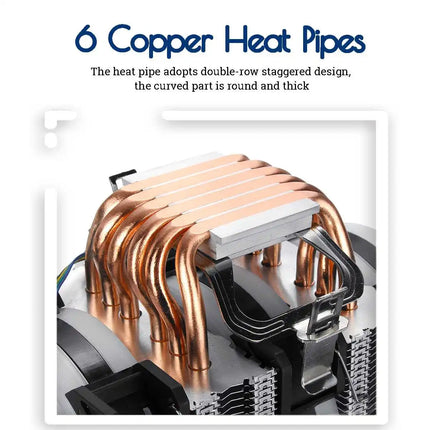

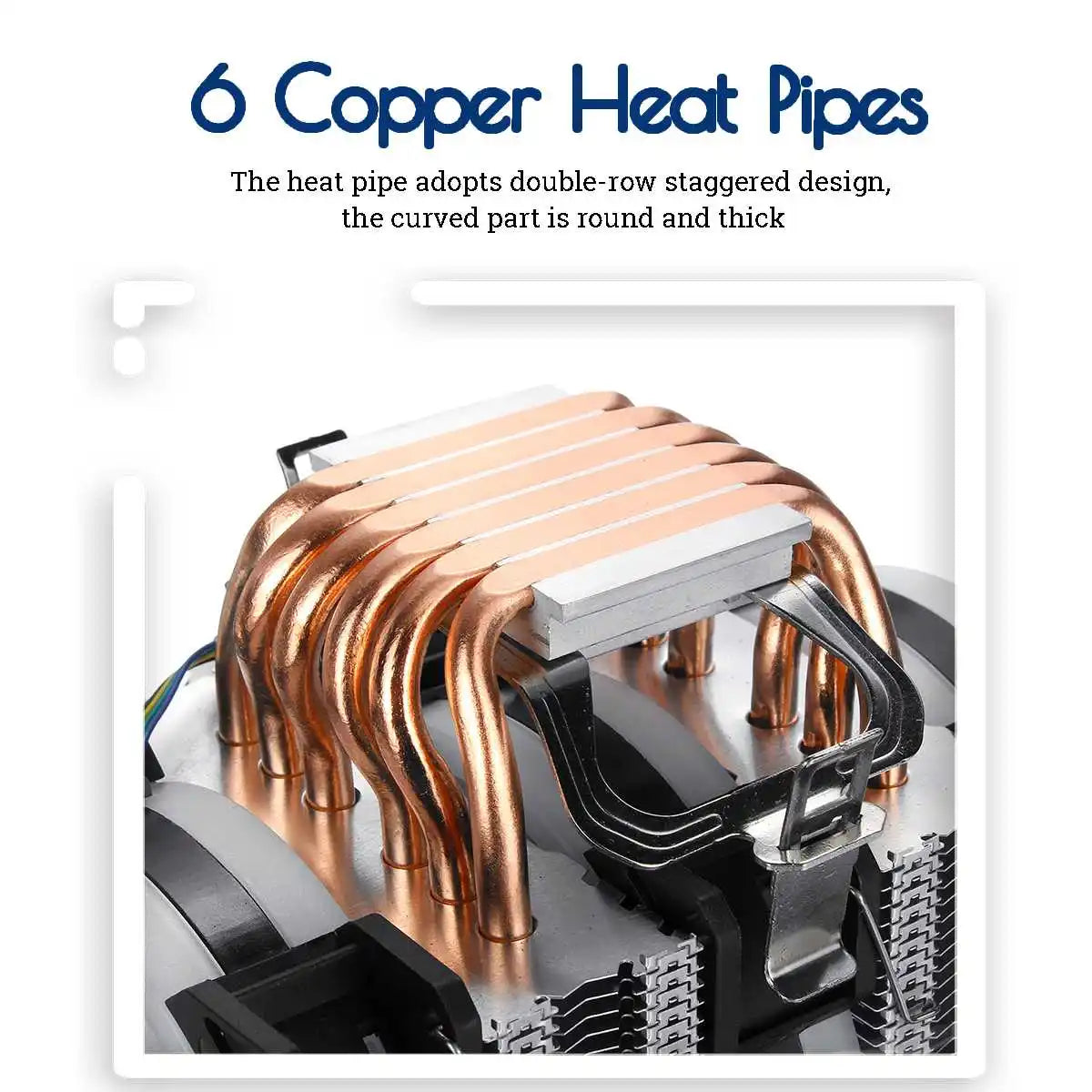

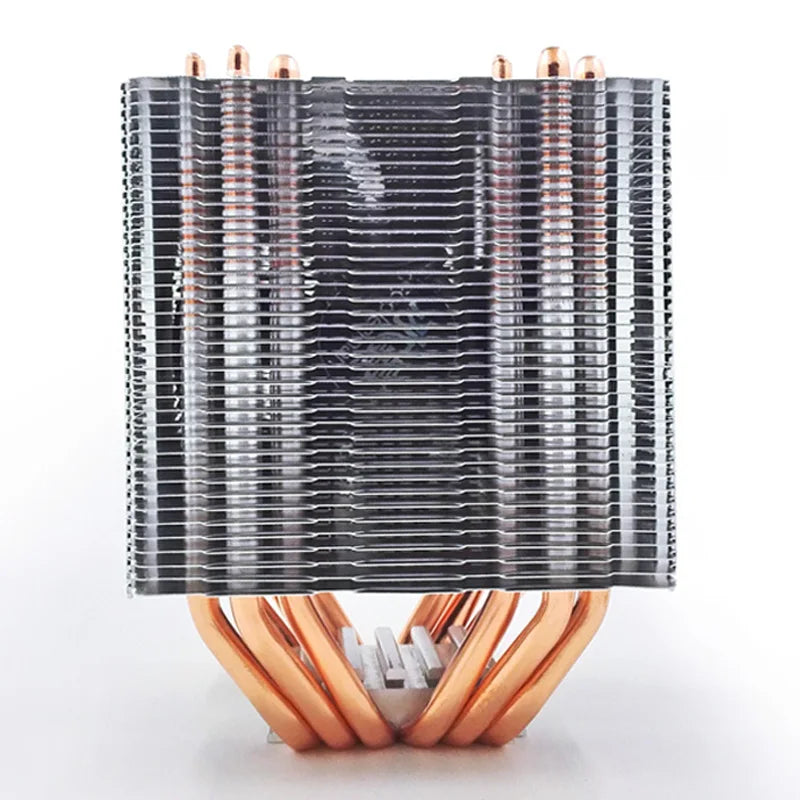

Heat pipe specifications:Ø6mm*6pcs

Fan size:90*90*25mm

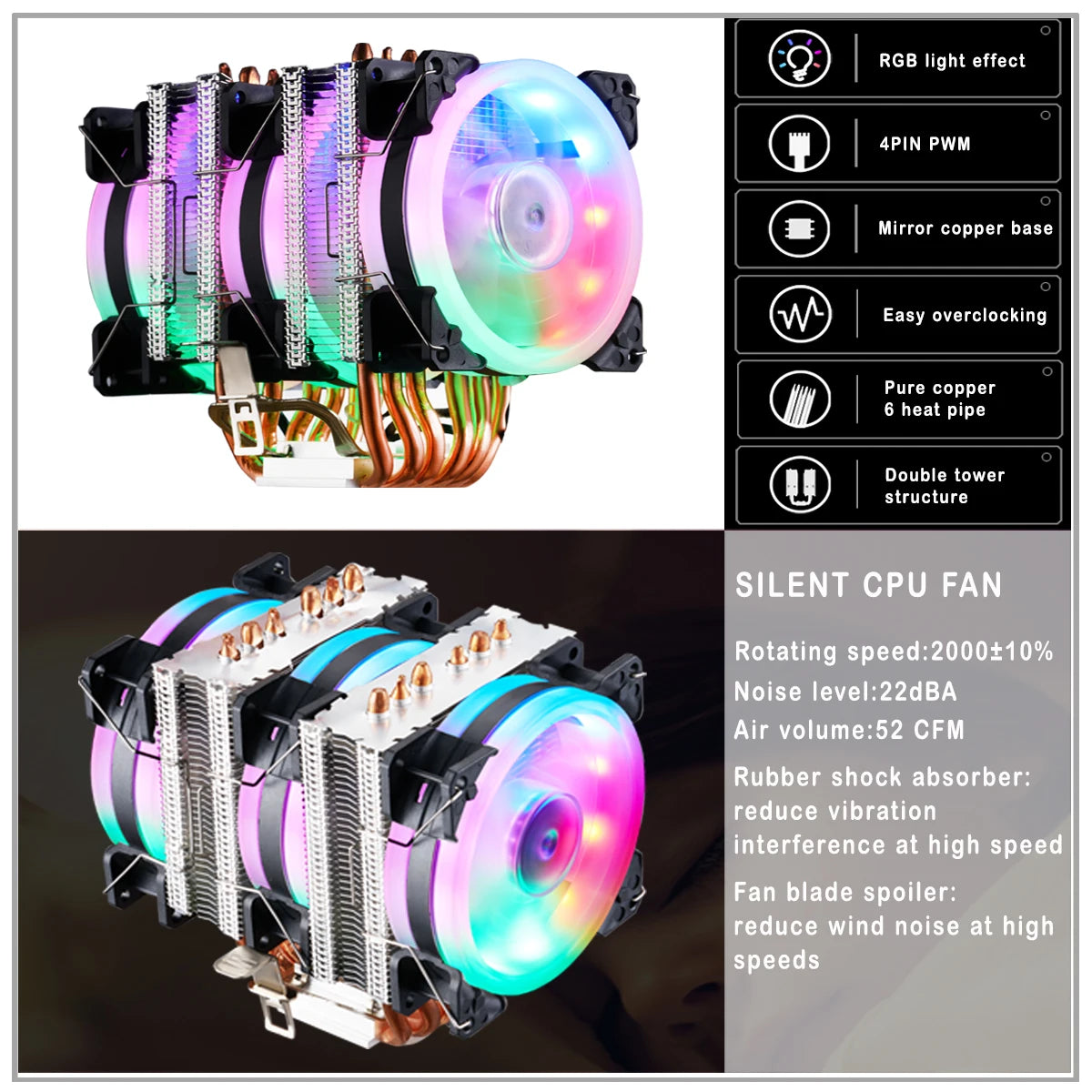

speed of the fan:2000RPM±10%

Fan air volume:52CFM

Fan noise:22 dBA

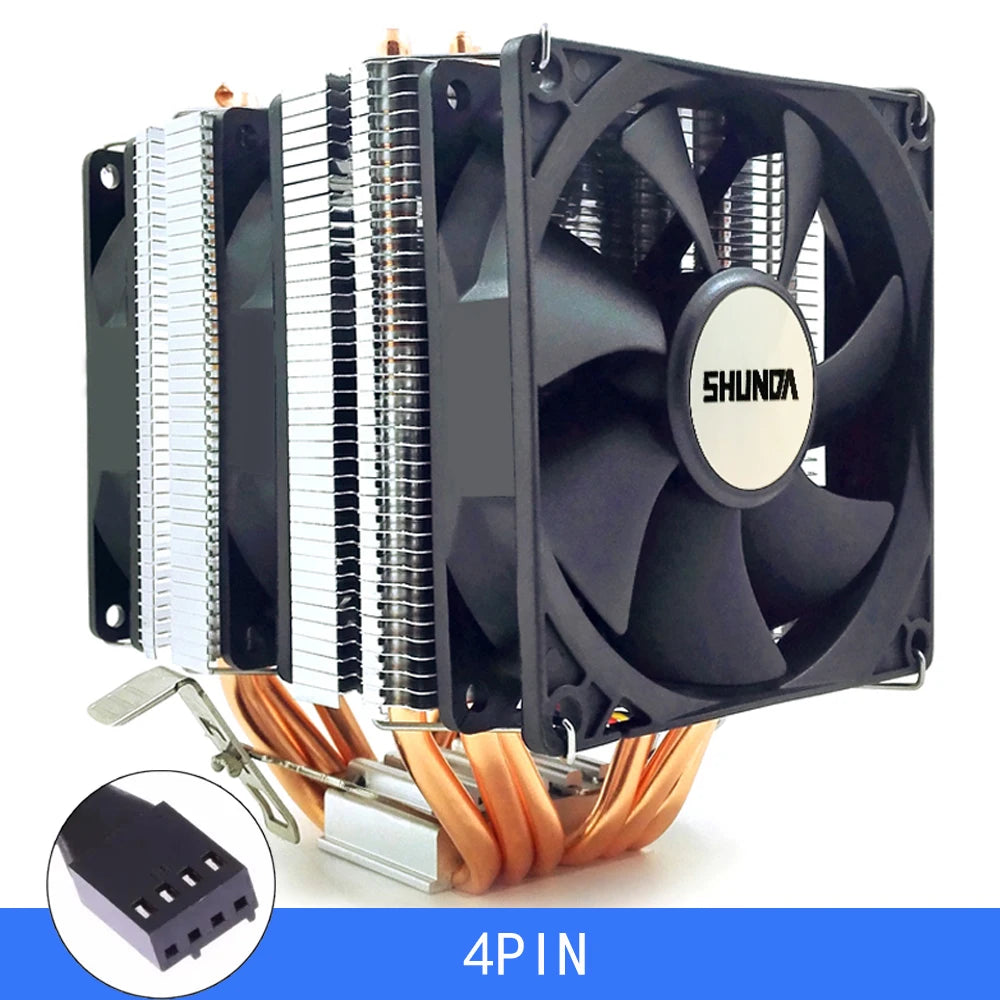

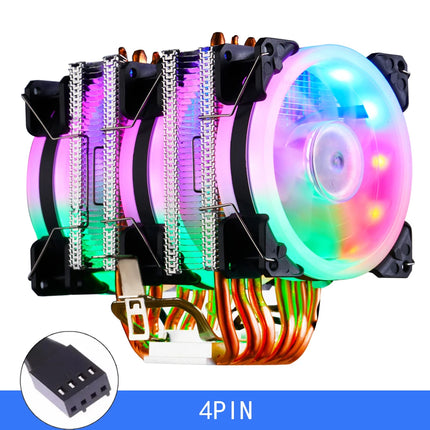

Fan interface:Small 3 pin

Bearing form:hydraulic bearing

Fan rated voltage:12V DC

Fan rated current:0.2A

Fan power:2.5W

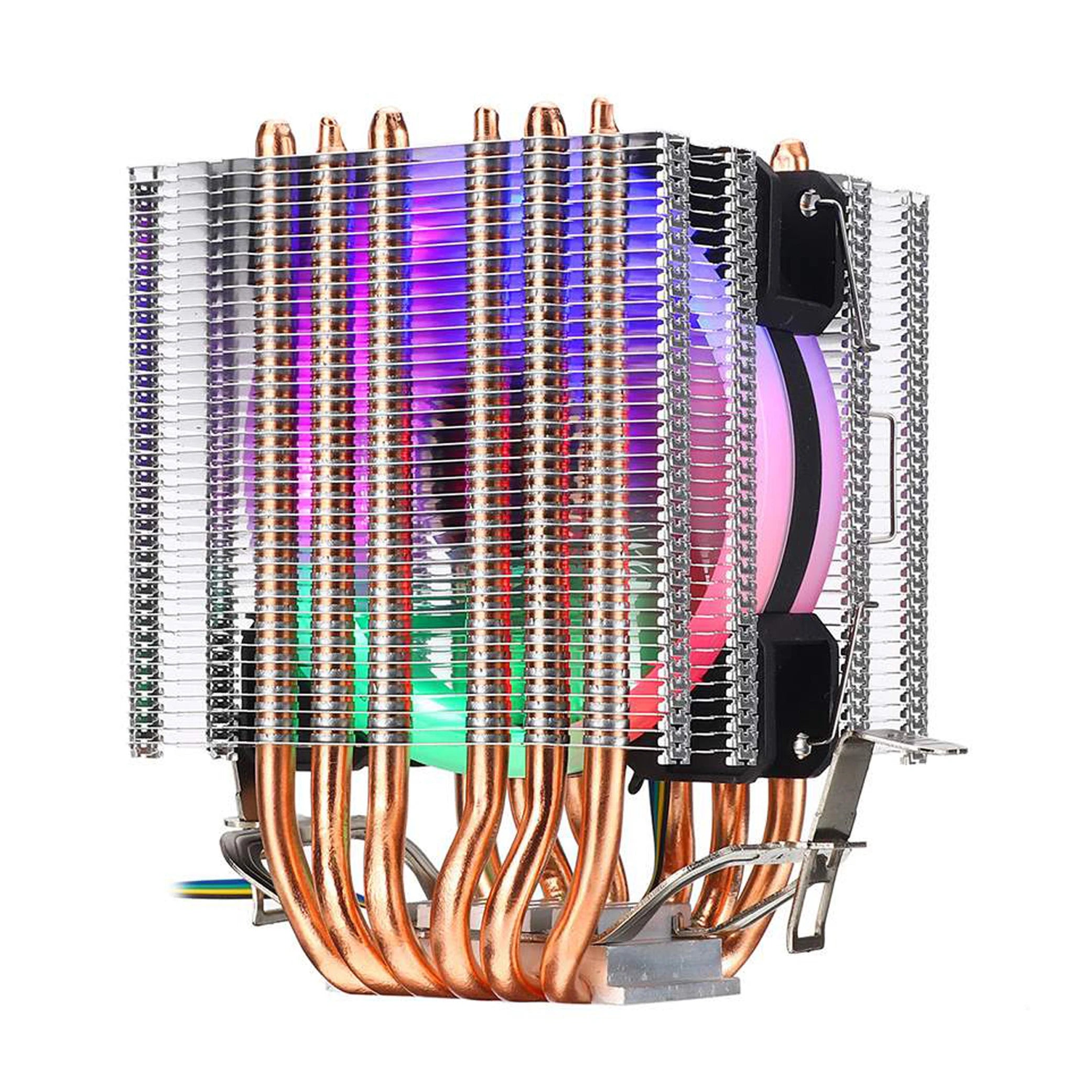

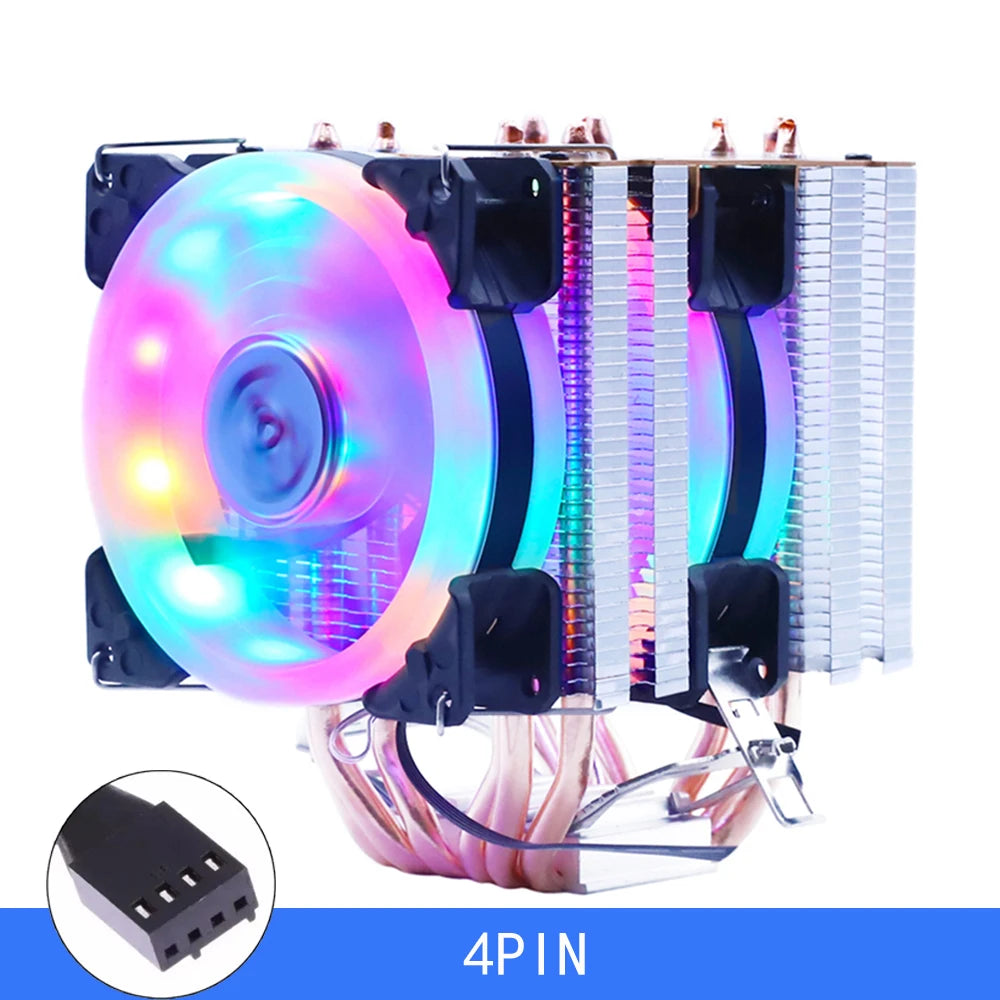

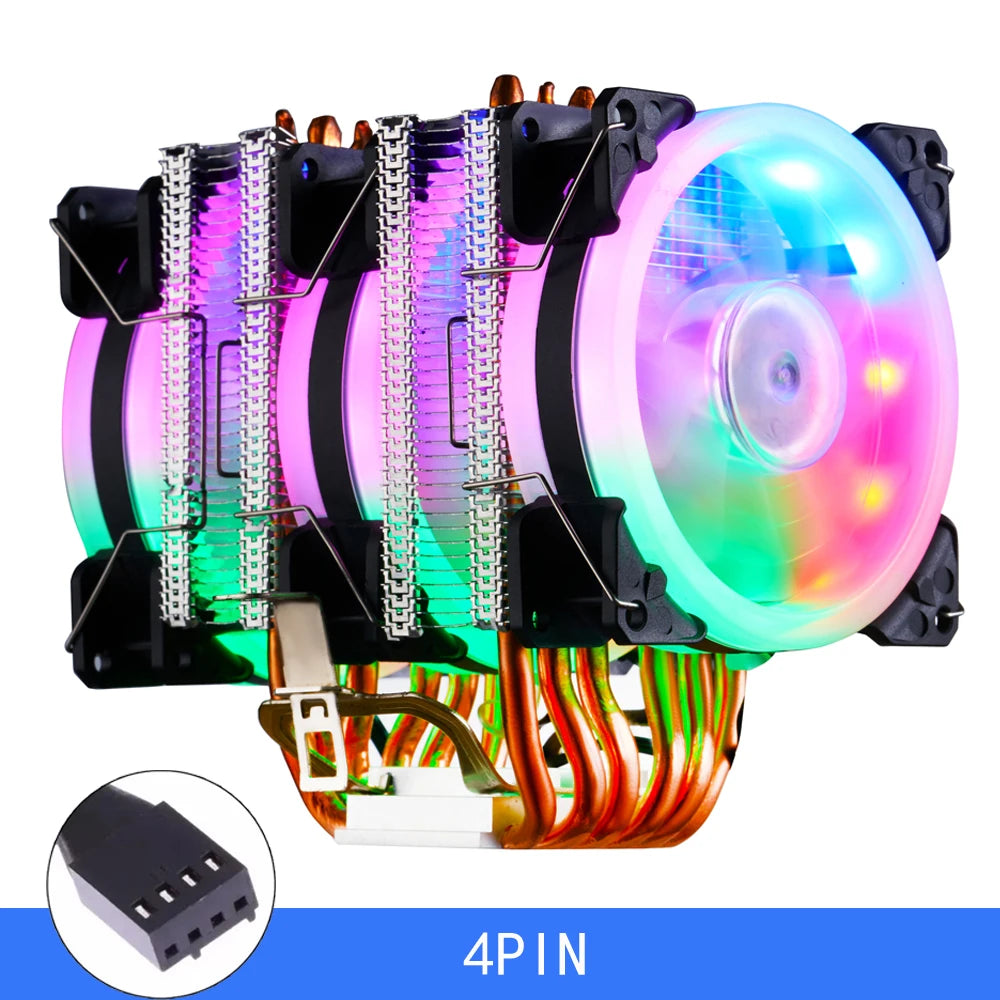

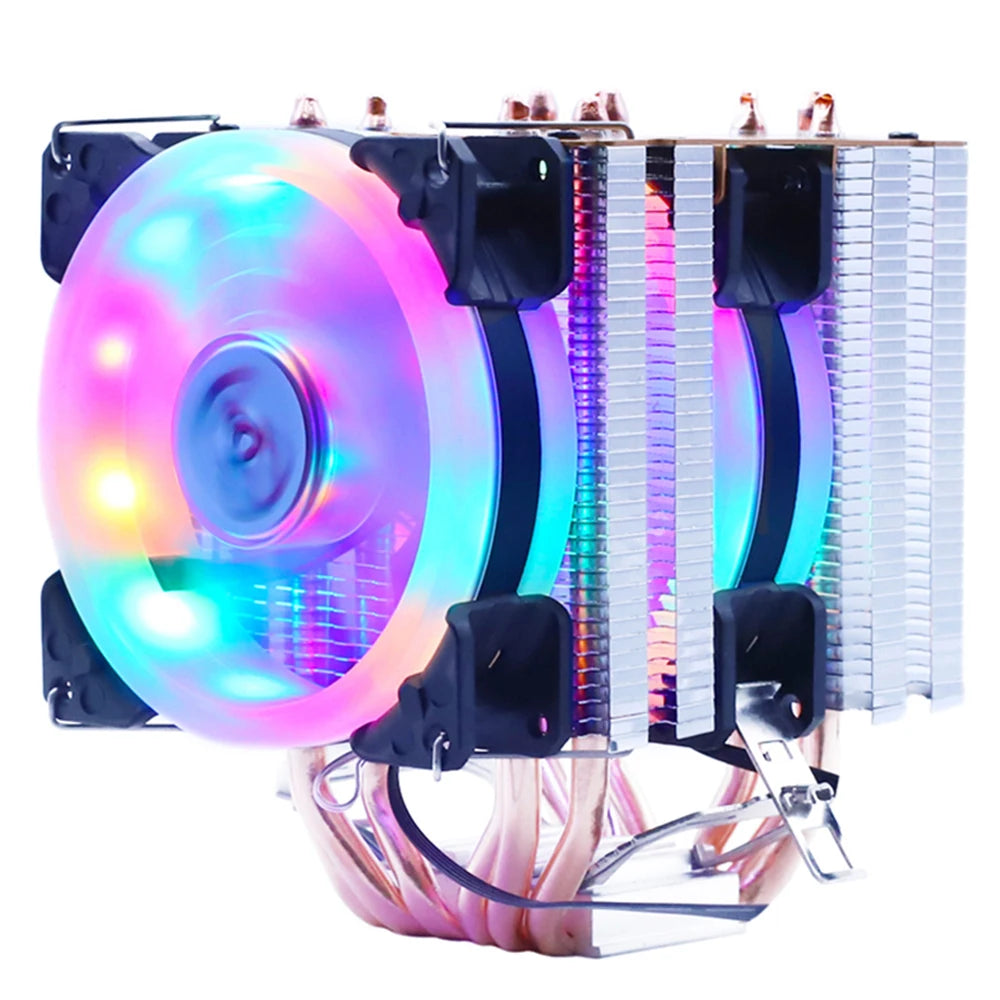

Rgb type:rgb

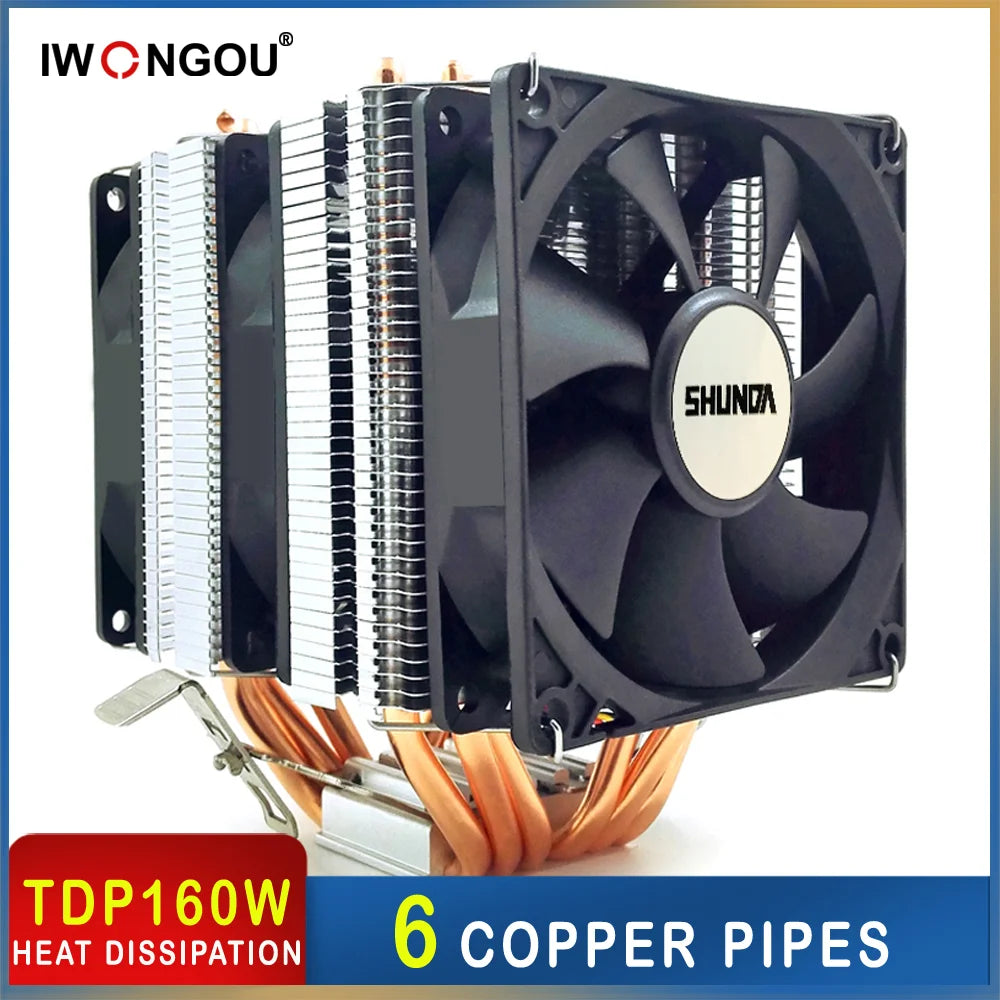

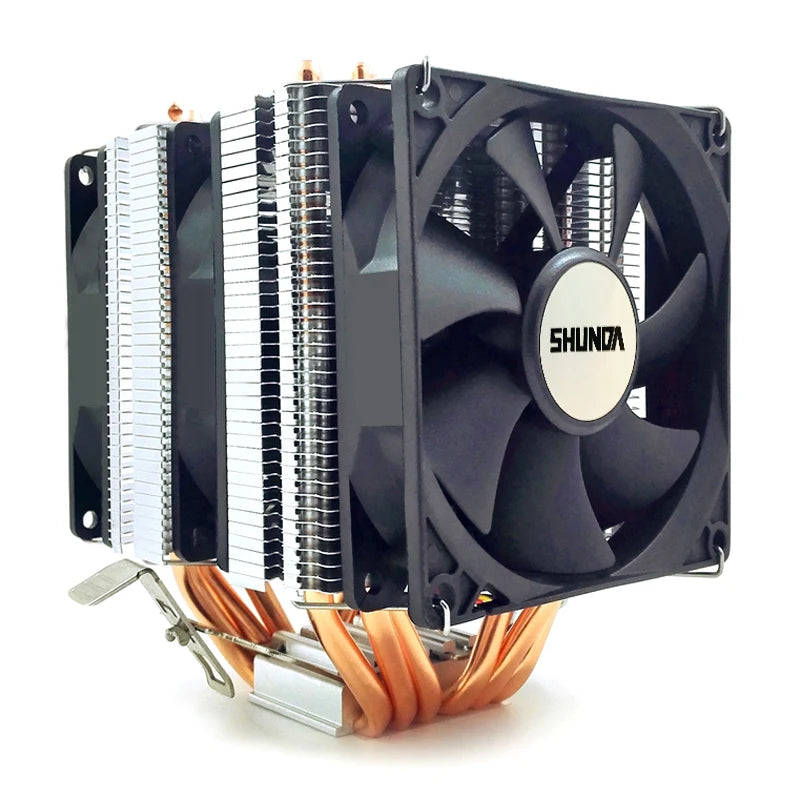

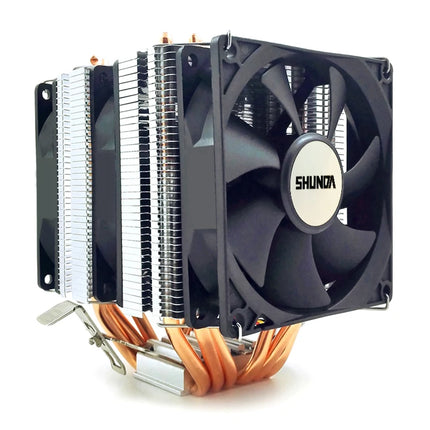

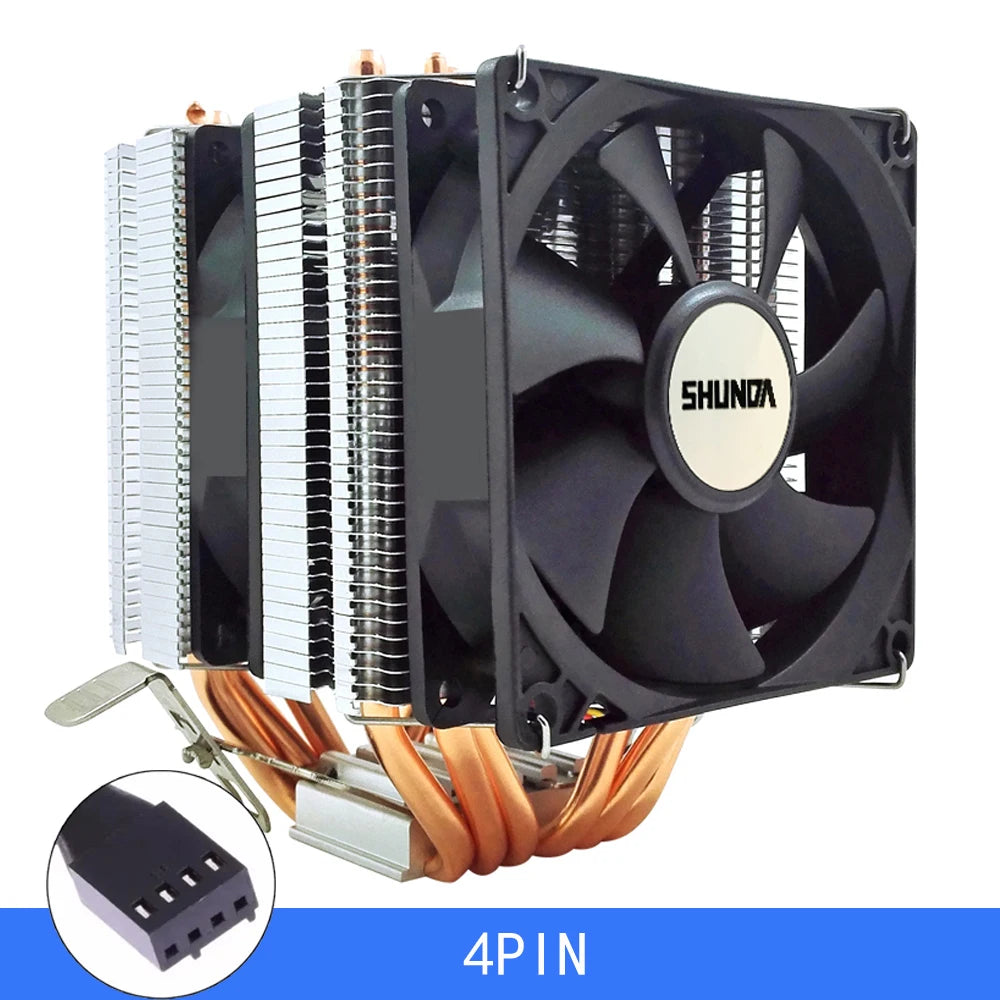

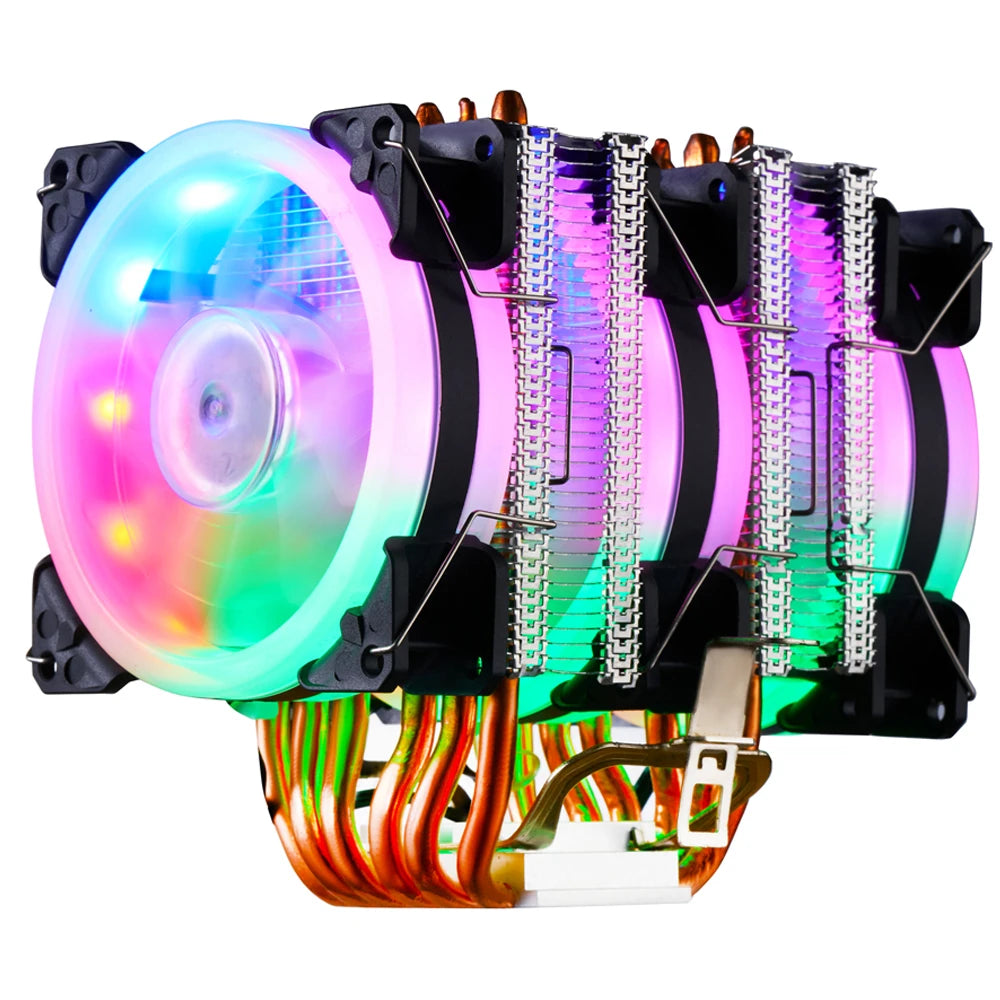

Model:hurricane air cooler cpu

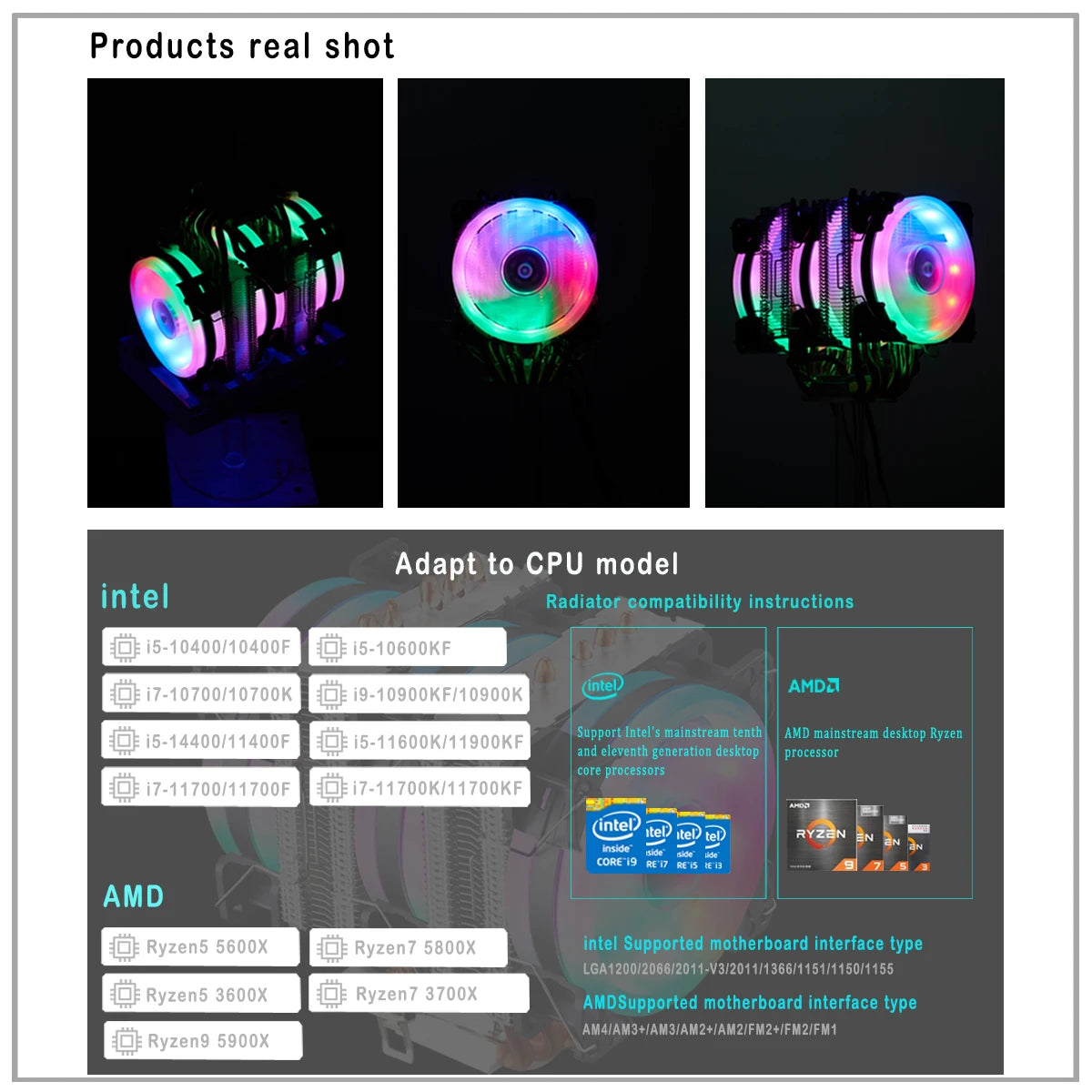

intel Supported motherboard interface type

For cpu cooler LGA1200/2066/2011-V3/2011/1366/1151/1150/1155

AMDSupported motherboard interface type

For cpu cooler AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Under normal circumstances, 6 cpu heatsink copper pipes can effectively cooling cpu temperature by 10-15 degrees Celsius.

Package Contents:

CPU cooler * 1

Installation Kit * 1

Instructions * 1

Plastic nails*4

Plastic pin hole*4

Does not include thermal grease. ( It is a liquid prohibited item. It is easy to be intercepted by customs.)

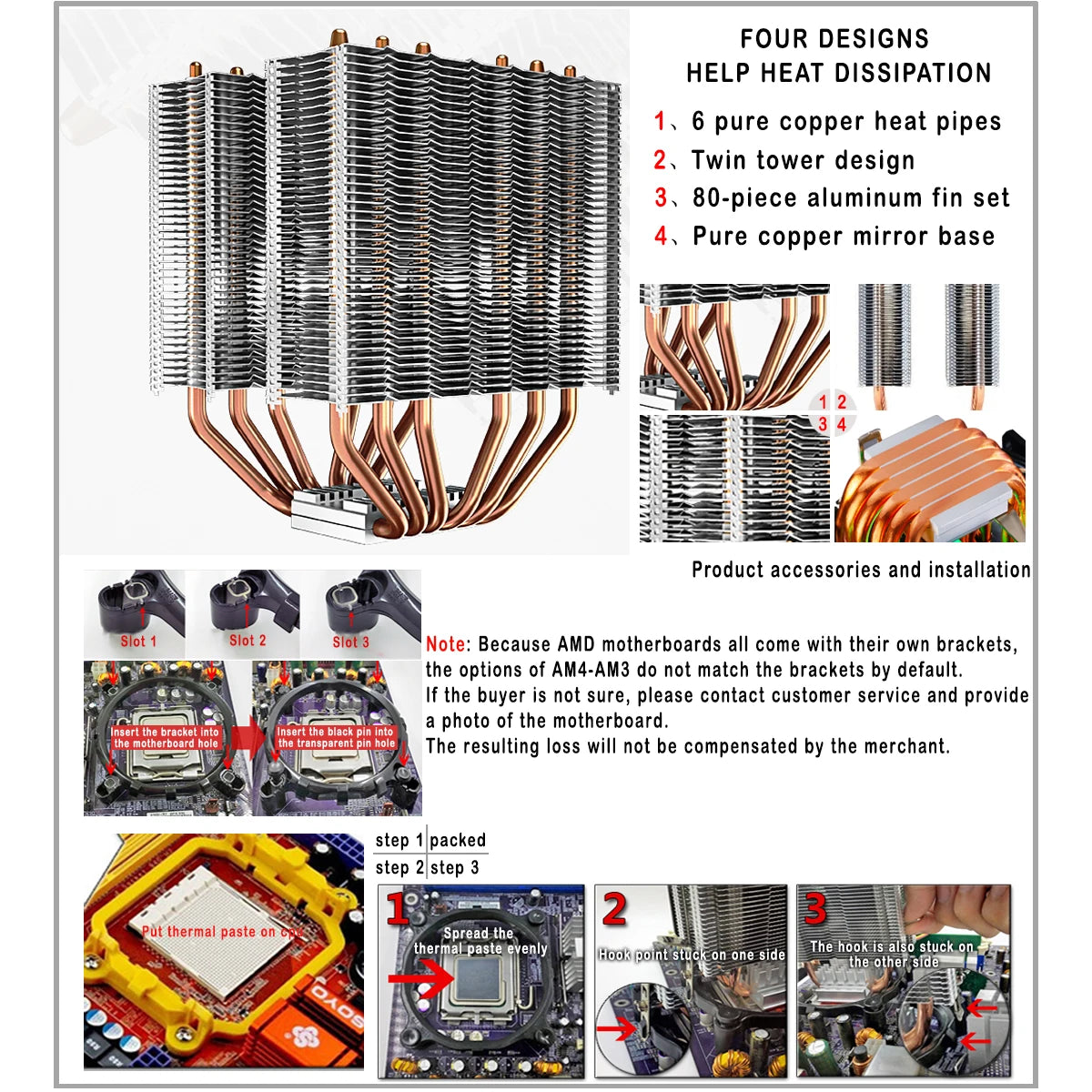

Installation steps:

Step1:Fix the bracket above the cpu with plastic nails;

Step2:Spread the thermal grease evenly on the cpu;

Step3:Fix the hooks on both sides of the cpu cooler to the brackets.

Operation as shown
